HC-ADV-B10-HHWH-1STM32-MF-BK
Weight
0.268 kg
Series HC-ADV-B
HC-ADV-B10-HHWH-1STM32-MF-BK - Housing

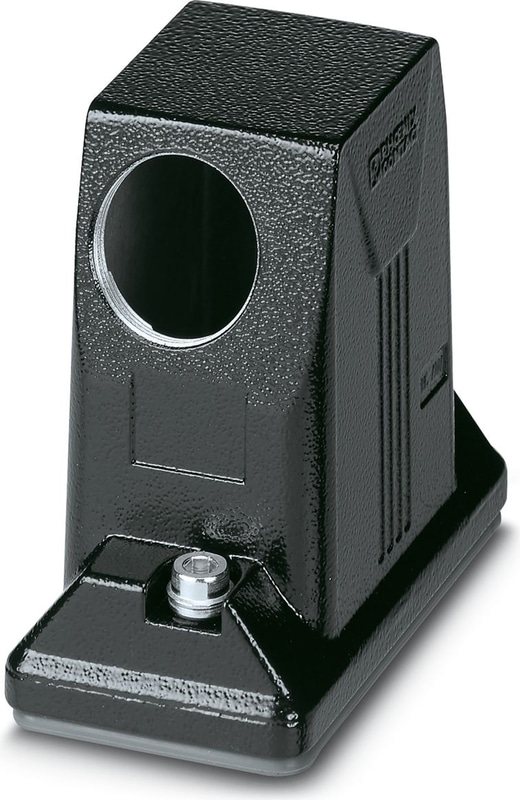

Sleeve housing B10, with screw locking, material: Die-cast aluminum, salt water resistant, cable outlets: 1, lateral, 1x M32, height: 93.7 mm, cable gland: none, increased environmental requirements
Documents
Technical Specifications
Notes
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
Product properties
| Housing type | Sleeve housing |
| Product family | HC-ADV |
| Application | increased environmental requirements |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M32 |
| Type | Tall design |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | none |
Connection data
| Tightening torque | 3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing) |
Dimensions
| Width | 57 mm |
| Height | 93.7 mm |
| Length | 105 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 65 mm |
Material specifications
| Seal material | Viton |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | Powder-coated, black |
| Locking latch material | Stainless steel |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (0.2 bar/24 h) |
| Degree of Protection | IP69 (ISO 20653:2013-02) |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| Enclosure rating (NEMA) | 4X (UL 50e) |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK09 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Mechanical data
| Type of the screw connection | 1x M32 |
| Locking Type | Screw |
Mounting
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
Accessories
HC-B-AF-SET - Panel-mount flange for HEAVYCON ADVANCE housing, set consisting of: 2 panel-mount flanges with 4 self-tapping screws (M4, Torx®) and 4 fan-type washers
HC-M-KV-M32(19-27) - Metal screw connection up to 5 bar, thread length: 8 mm, cable diameter: 19 - 27 mm, WAF 43, screw connection: M32
G-INS-M32-M68N-NNES-S - Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 15 mm ... 21 mm, shielding: no, connecting thread: M32 x 1.5, color: silver, with O-ring
