HC-ADV-B10-HHWH-1TGM32-PL
Weight
0.148 kg
Series HC-ADV-B
HC-ADV-B10-HHWH-1TGM32-PL - Housing

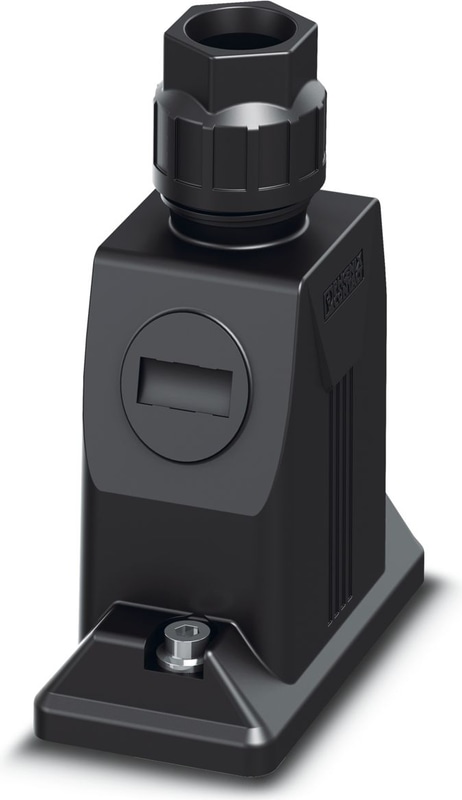

Sleeve housing B10, with screw locking, material: PA, cable outlets: 1, straight, M32, height: 95 mm, cable gland: with, Standard
- Integrated screw connection
- Lower costs than metal version
- Low weight
- Lower risk of condensation
Technical Specifications
Notes
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24, HV03-I-PT, HC- 3-E...C |
Product properties
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | M32 |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | with |
Connection data
| External Cable Diameter | 11 mm ... 21 mm |
| Tightening torque | 3 Nm ... 5 Nm (for M6 mounting screws on the sleeve housing) |
| Tightening torque, union nut | 7.50 Nm |
Dimensions
| Width | 57 mm |
| Height | 95 mm |
| Length | 105 mm |
| Wrench size, union nut | 30 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 65 mm |
Material specifications
| Material Pressure screw | PA |
| Flammability rating according to UL 94 | V0 (Housing) |
| Seal material Profile gasket | NBR |
| Seal material cable seal | NBR |
| Housing Material | PA |
| Locking latch material | Stainless steel |
| Material of locking screw | Stainless steel |
| Impact strength | IK08 |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
Mechanical data
| Type of the screw connection | M32 |
| Locking Type | Screw |
Cable/line
| External cable diameter Cable 1 | 11 mm ... 21 mm |
Mounting
| Assembly instructions | M6 locking screw, with 5 mm Allen screw head |
| Fixing screws | M6 (screw head: 5 mm Allen screw) |
Accessories
Why Proax for Phoenix Contact 1404229?
Proax is an authorized distributor of Phoenix Contact 1404229 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
