1183803
Official DistributorSKU
PHX1183803
MPN
WIL-RM-S-SG-R1
Weight
0.6 kg

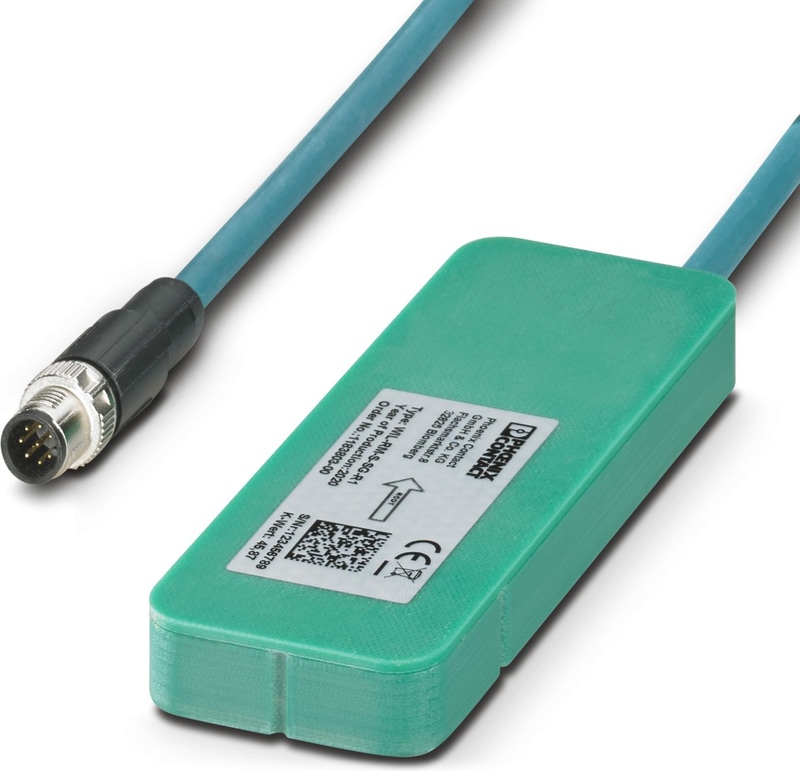

WIL-RM-S-SG-R1 - Sensor
Sensor for measuring loads on the rotor blade of wind turbine generators. Robust (can be stood on). With magnetic shielding. Cable resistance compensation thanks to 6-wire connection technology.
- Robust sensor for use in the rotor blade of a WTG
- Proactive monitoring of the rotor blade
- Proven technology, optimized for the wind industry
Technical Specifications
External dimensions
| Width / Height / Depth | 48 mm / 10 mm / 130 mm |
Cable entry
| Connection Method | M12 connector, 8-pos. (A-coded) |
Measuring system
| Elongation: Working elongation | max. 800 µm/m (at 108 load cycles) |
| Elongation: Elongation at break | 2500 µm/m |
| Resistance: | 350 Ω ±0.3 % |
| Resistance: Offset | max. ± 3.5 Ω |
| K-factor: | approx. 2 ... 2.2 (see sensor rating plate) |
| Coefficient of expansion: | 10.8 10-6 K-1 |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Shock (operation) | 30g (in accordance with EN 60068-2-27/IEC 60068-2-27) |
| Vibration (Operation) | 5g (in accordance with EN 60068-2-6/IEC 60068-2-6) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3,000 m above mean sea level; at >3,000 m above mean sea level observe derating) |
Accessories
WT-BASE LS HF 6 - Cable binder base, for cable binders up to 6 mm wide, self-adhesive (rubber) and screwable, 4.8 mm fixing hole, 4-sided cable binder feed-through
CUTFOX-S VDE - Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested
Why Proax for Phoenix Contact 1183803?
Proax is an authorized distributor of Phoenix Contact 1183803 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
