1006746
Official DistributorSKU
PHX1006746
MPN
WIL-RM-S-SG
Weight
0.25 kg

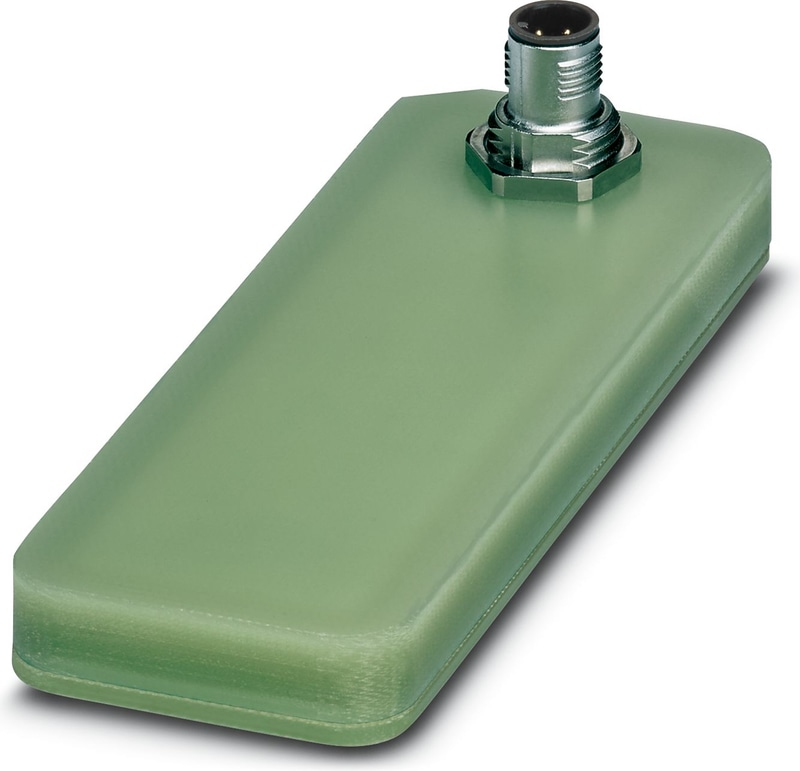

WIL-RM-S-SG - Sensor
Sensor for measuring loads on the rotor blade of wind turbine generators
- Robust sensor for use in the rotor blade of a WTG
- Proactive monitoring of the rotor blade
- Proven technology, optimized for the wind industry
Documents
Technical Specifications
External dimensions
| Width / Height / Depth | 48 mm / 10 mm / 130 mm |
Material specifications
| Material | Fiberglass-reinforced plastic |
Cable entry
| Connection Method | M12 connector, A-coded |
Measuring system
| Elongation: Working elongation | max. 1500 µm/m |
| Elongation: Elongation at break | 2500 µm/m |
| Resistance: | 350 Ω ±0.3 % |
| Resistance: Offset | max. ± 3.5 Ω |
| Coefficient of expansion: | 10.8 10-6 K-1 |
Ambient conditions
| Degree of Protection | IP68, 24 h / 2 m |
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Maximum altitude | max. 3000 m (Operation) |
Accessories
WT-BASE LS HF 6 - Cable binder base, for cable binders up to 6 mm wide, self-adhesive (rubber) and screwable, 4.8 mm fixing hole, 4-sided cable binder feed-through
WP-PA HF 13,0 BK - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: V0, inner diameter: 10 mm, Total length: 50 m
WP-PA HF-HB 13,0 BK - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: HB, inner diameter: 10 mm, Total length: 50 m
CUTFOX-S VDE - Diagonal cutter for hard (piano wire) and soft wires, VDE 1000 V AC/1500 V DC tested
Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, shielded (Advanced Shielding Technology), free cable end, on Socket angled M12, coding: A, cable length: 3 m
Why Proax for Phoenix Contact 1006746?
Proax is an authorized distributor of Phoenix Contact 1006746 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
