1184015
Official DistributorSKU
PHX1184015
MPN
WIL-BI-RMS-000-00
Weight
18 kg

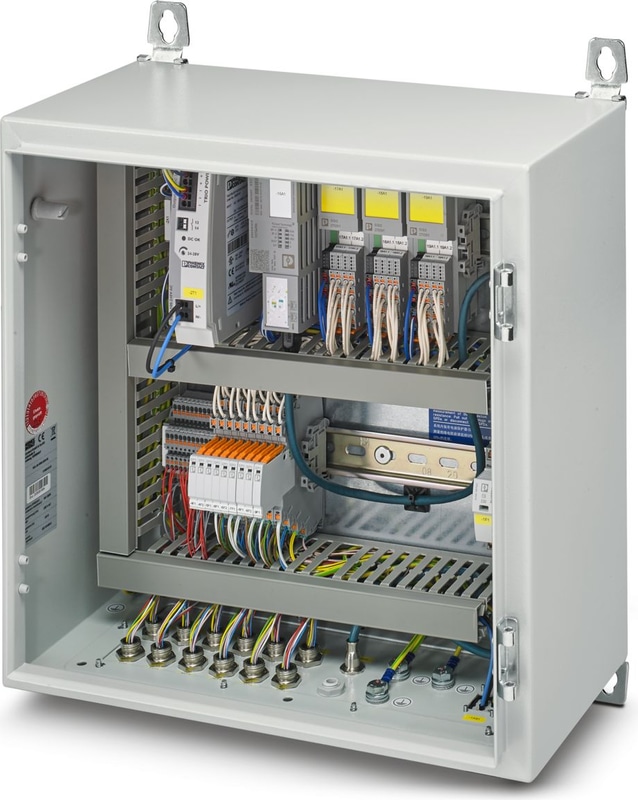

WIL-BI-RMS-000-00 - Switchgear and controlgear assembly
Evaluation unit for sensor data for load monitoring, including application software. Communication via Modbus/TCP and PROFINET. See “Technical data” tab for scope of supply.
- Early detection of damage and optimized maintenance intervals, thanks to continuous monitoring
- Easy connection to existing systems, thanks to open interfaces
- Maintenance work can be scheduled and parameterization adjusted, thanks to remote access
- Maximum availability of wind turbine generators, even under extreme conditions
- Operation and configuration via web interface
Technical Specifications
Product properties
| Scope of delivery | 1x network cable - NBC-MSD/10,0-93E/R4AC SCO (Item No. 1407363)1x connecting cable for feed-in |
Insulation characteristics
| Protection class | I |
Electrical properties
| Control voltage | 24 V DC |
| Nominal voltage UN | 230 V AC (50 Hz) |
| Nominal current IN | 0.6 A |
| Nominal power | 158 W |
Fuse
| Recommended backup fuse: | 6 A (Characteristic B, 1-pos.) |
External dimensions
| Width / Height / Depth | 400 mm / 400 mm / 210 mm |
Material specifications
| RAL color | 7035 |
| Material | Sheet steel |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -25 °C ... 40 °C |
| Permissible humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 2000 m above mean sea level) |
Accessories
NBC-MS/10,0-94B/FS SCO - Network cable, Ethernet CAT5 (1 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded (Aluminum-coated foil, tinned copper braided shield), Plug straight M12 SPEEDCON, coding: A / IP67, on Socket straight M12 SPEEDCON, coding: A / IP67, cable length: 10 m
Why Proax for Phoenix Contact 1184015?
Proax is an authorized distributor of Phoenix Contact 1184015 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
