Name: 3002652
Brand: Phoenix Contact
SKU: PHX3002652

Official Distributor

By Phoenix Contact

SKU

MPN

UK 3D-MSTBV-5,08-F

Weight

0.006 kg

Series UK

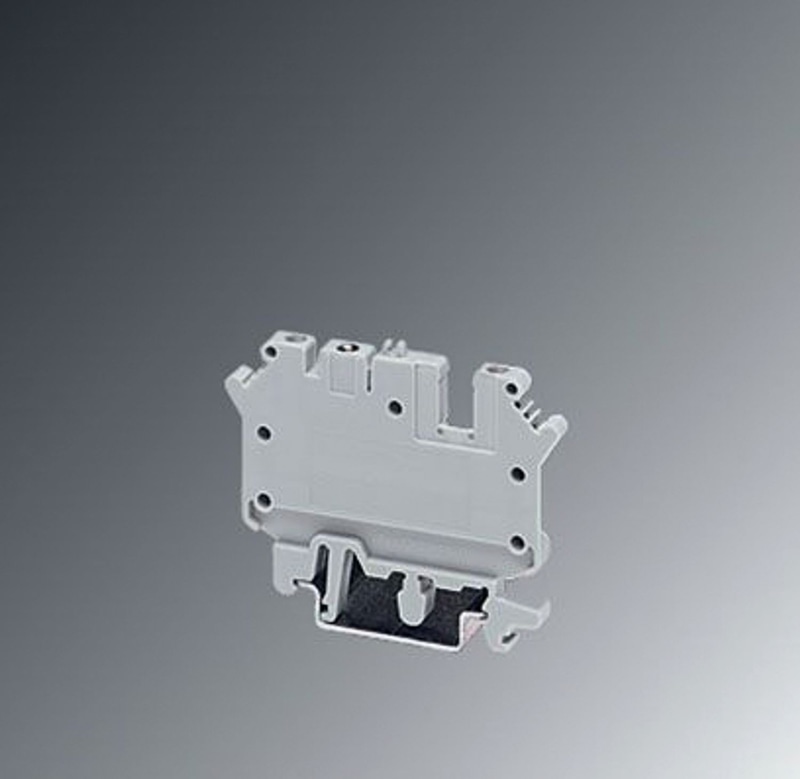

UK 3D-MSTBV-5,08-F - Double-level flange terminal block

Double-level flange terminal block, for MSTB flange plug screw connection, nom. voltage: 250 V, nominal current: 24 A, number of connections: 3, number of positions: 1, 1 level, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray

Product properties

Product family	UK 3D-MSTBV
Number of Positions	1
Pitch	5.08 mm
Number of Connections	3
Number of rows	2
Potentials	1

Insulation characteristics

Overvoltage category

III

Electrical properties

Rated surge voltage	4 kV
Maximum power dissipation for nominal condition	0 W

Connection data

Number of connections per level

1 level

Screw thread	M3
Tightening torque	0.5 ... 0.6 Nm
Stripping length	8 mm
Connection in acc. with standard	IEC / EN
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 0.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1 mm²
Nominal Current	24 A (terminal current - MSTB connection: 12 A)
Maximum Load Current	12 A (with 4 mm² conductor cross section)
Nominal Voltage	250 V

Dimensions

Width	5.1 mm
End cover width	2 mm
Pitch	5.08 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V2
Insulating material group	I
Insulating material	PA
Contact surface	Tin Sn

Mechanical data

Open side panel

Yes

Ambient conditions

Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and Regulations

Connection in acc. with standard

IEC / EN

Mounting

Mounting Type	NS 35/7,5
Mounting Type	NS 35/15
Mounting Type	NS 32
