3002186
Official DistributorSKU
PHX3002186
MPN
D-UK3D-MSTBV-5,08
Weight
0.004 kg
Series D-UK

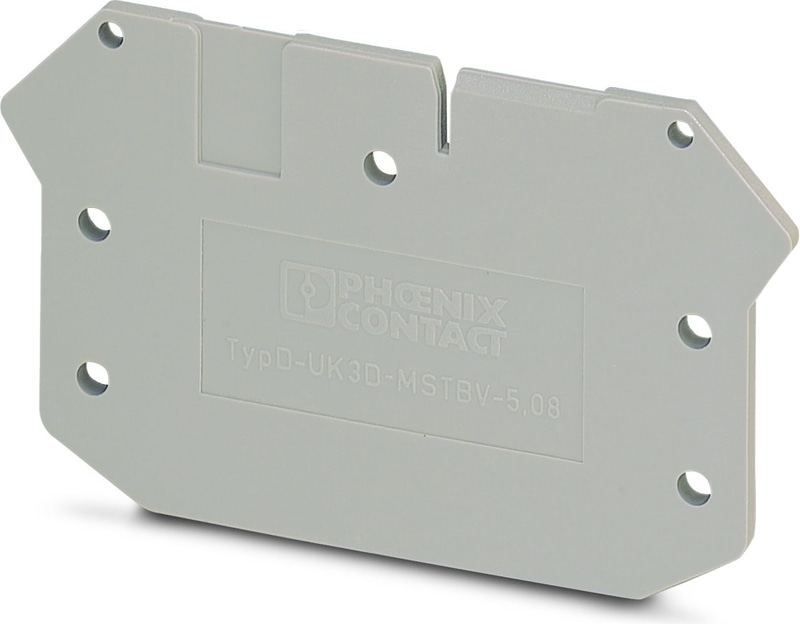

D-UK3D-MSTBV-5,08 - End cover
End cover, pitch: 5.08 mm, depth: 49.5 mm, width: 2 mm, height: 60 mm, number of positions: 1, color: gray
Technical Specifications
Product properties
| Product family | DECKEL + RZ + DP |
| Number of Positions | 1 |
| Pitch | 5.08 mm |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Material specifications
| Color | gray |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
Dimensions
| Width | 2 mm |
| Height | 60 mm |
| Depth | 49.5 mm |
| Pitch | 5.08 mm |
Why Proax for Phoenix Contact 3002186?
Proax is an authorized distributor of Phoenix Contact 3002186 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
