Name: 3002131
Brand: Phoenix Contact
SKU: PHX3002131
Price: 14.9500 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

UK 3D-MSTBV-5,08

Weight

0.012 kg

Series UK

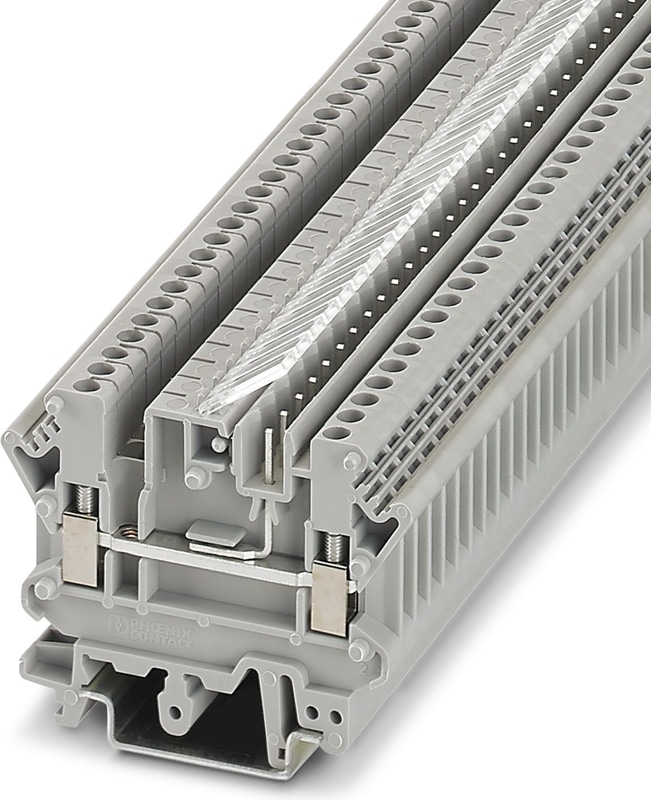

UK 3D-MSTBV-5,08 - Feed-through terminal block

Feed-through terminal block, nom. voltage: 250 V, nominal current: 24 A, number of connections: 3, number of positions: 1, connection method: Screw/plug-in connection, 1 level, cross section: 0.2 mm2 - 4 mm2, mounting type: NS 32, NS 35/15, NS 35/7,5, color: gray

Notes

General

Current and voltage are determined by the plug used.

General

Note	With a free-hanging connection, an insulating foil has to be placed between the plug connection and electrically conductive surfaces.

Product properties

Product family	UK 3D-MSTBV
Number of Positions	1
Pitch	5.08 mm
Number of Connections	3
Number of rows	2
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	4 kV
Maximum power dissipation for nominal condition	0 W

Connection data

Number of connections per level

1 level

Screw thread	M3
Tightening torque	0.5 ... 0.6 Nm
Stripping length	8 mm
Internal cylindrical gage	A3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1 mm²
Nominal Current	24 A (terminal current - MSTB connection: 12 A)
Maximum Load Current	12 A (with 4 mm² conductor cross section)
Nominal Voltage	250 V

Dimensions

Width	5.08 mm
End cover width	2 mm
Height	60 mm
Depth on NS 32	54.5 mm
Depth on NS 35/7,5	49.5 mm
Depth on NS 35/15	57 mm
Pitch	5.08 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V2
Insulating material group	I
Insulating material	PA
Contact surface	Tin Sn
Static insulating material application in cold	-40 °C
Relative insulation material temperature index (Elec., UL 746 B)	125 °C

Surge voltage test

Test voltage setpoint	4.8 kV
Result	Test passed

Temperature-rise test

Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 2.5 mm²	0.3 kA
Result	Test passed

Power-frequency withstand voltage

Test voltage setpoint	1.5 kV
Result	Test passed

Mechanical data

Open side panel

Yes

Mechanical strength

Result

Test passed

Attachment on the carrier

Result

Test passed

Test for conductor damage and slackening

Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.2 mm² / 0.2 kg
Conductor cross section/weight	2.5 mm² / 0.7 kg
Conductor cross section/weight	4 mm² / 0.9 kg
Result	Test passed

Needle-flame test

Time of exposure	30 s
Result	Test passed

Oscillation/broadband noise

Specification	DIN EN 50155 (VDE 0115-200):2022-06
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Spectrum	Service life test category 2, bogie-mounted
Spectrum	Service life test category 1, class B, body mounted
Frequency	f1 = 5 Hz to f2 = 250 Hz
Frequency	f1 = 5 Hz to f2 = 150 Hz
ASD level	6.12 (m/s²)²/Hz
ASD level	0.964 (m/s²)²/Hz
Acceleration	3.12g
Acceleration	0.58g
Test duration per axis	5 h
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Test directions	X-, Y- and Z-axis
Result	Test passed
Result	Test passed

Shocks

Specification	DIN EN 50155 (VDE 0115-200):2022-06
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Pulse shape	Half-sine
Pulse shape	Half-sine
Acceleration	30g
Acceleration	5g
Shock duration	18 ms
Shock duration	30 ms
Number of shocks per direction	3
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Result	Test passed

Ambient conditions

Ambient Temperature (Operation)	-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Mounting

Mounting Type	NS 32
Mounting Type	NS 35/15
Mounting Type	NS 35/7,5
