Official DistributorSKU
MPN
UM 72-SEFE/R LBGY
Weight
0.007 kg
Series UM

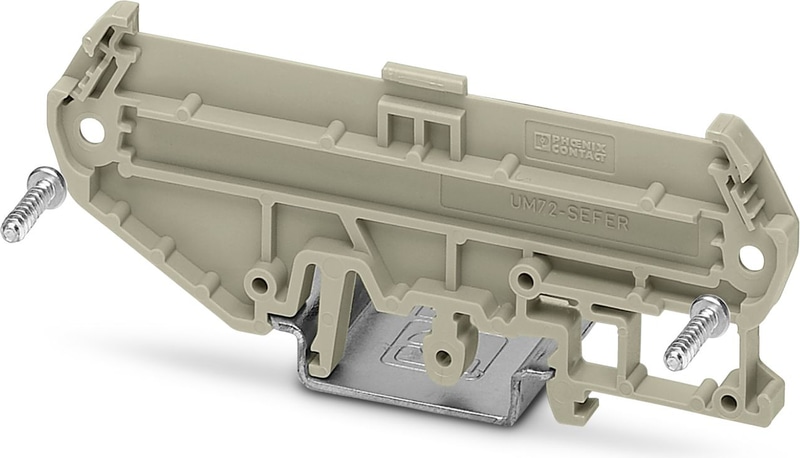

UM 72-SEFE/R LBGY - Lateral element
Press-drawn section housings, DIN rail mounting, Lateral element (right), with snap-on foot, width: 5 mm, height: 89.6 mm, depth: 37.6 mm
- Easy installation
- Flexible size and shape
- Inexpensive as a result of reducing the number of separate housing parts
Technical Specifications
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM72 |
| Type | Lateral element (right) |
| Ventilation openings present | no |
Dimensions
| Width | 5 mm |
| Height | 89.6 mm |
| Depth | 37.6 mm |
Material specifications
| Color (Housing) | beige (RAL 7032) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
Mounting
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 2915863?
Proax is an authorized distributor of Phoenix Contact 2915863 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
