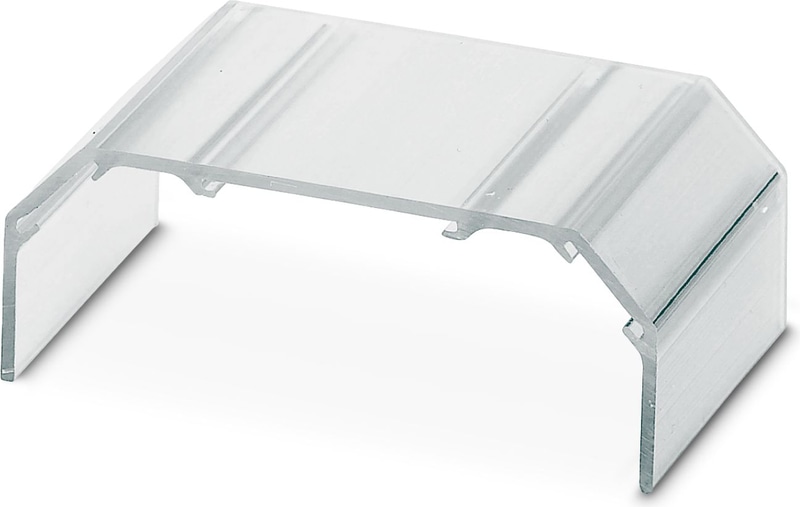

The figure shows the standard item
2909455
Official DistributorSKU
PHX2909455
MPN
UM122-A/U92
Series UM122-A-U92
UM122-A/U92 - Covering hood
Press-drawn section housings, Latching, Cover, 92 mm wide, width: 92 mm, Note: length of the cover = length of the PCB - 1.8 mm
- Tailor-made housing length, can be cut to length with millimeter precision
- Easy integration of large electronics components, thanks to the open design
- Easy device mounting thanks to snap-mount principle (the sides are fixed without the aid of tools)
- High degree of flexibility, thanks to freely positionable covering hoods
Technical Specifications
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM122 |
| Type | Cover |
| Ventilation openings present | no |
Dimensions
| Width | 92 mm |
Material specifications
| Color (Housing) | transparent |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PC |
| Surface characteristics | untreated |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
Mounting
| Mounting Type | Latching |
| Mounting Position | vertical or horizontal |
Why Proax for Phoenix Contact 2909455?
Proax is an authorized distributor of Phoenix Contact 2909455 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
