2865146
Official DistributorSKU
PHX2865146
MPN
UM122-2FLK14/EX-MB/8/IN/S7
Weight
0.474 kg
Series UM122

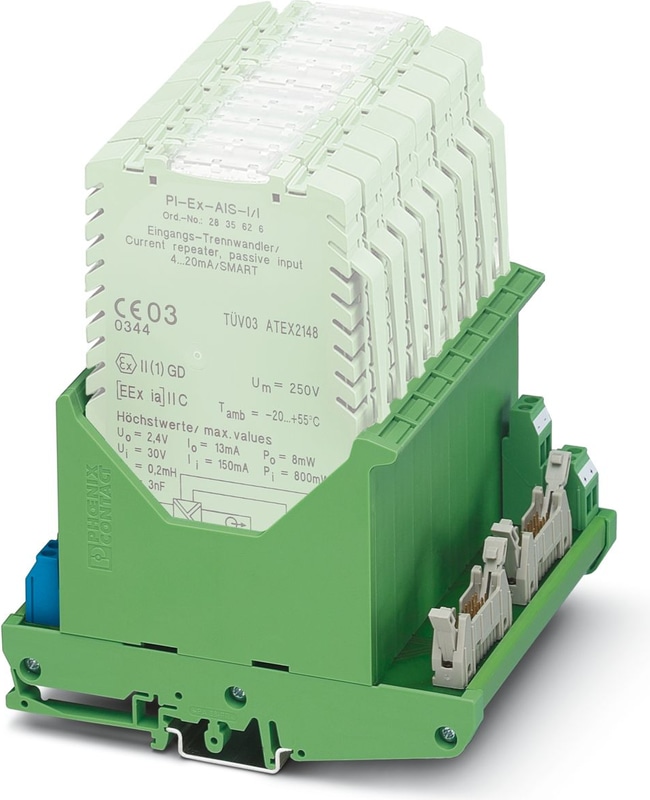

UM122-2FLK14/EX-MB/8/IN/S7 - Basic terminal block
Ex i motherboard to accept 8 x PI-Ex i repeater power supplies, input signal conditioners, etc. (PI-EX-...), FLK pin strips for connection to Siemens S7-300 analog in cards using system cables, assembly on NS 32, or NS 35/7.5.
Technical Specifications
Product properties
| Application | Base element |
Electrical properties
| Nominal voltage UN | 20 V DC ... 35 V DC |
| Nominal current IN | 60 mA (max. current consumption) |
| Reverse polarity protection | yes |
Supply
| Redundant supply | yes, decoupled from diodes |
Controller level
| Connection Method | FLK pin strip |
| Number of Connections | 2 |
| Number of Positions | 14 |
Field level
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Number of Positions | 16 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Safety data
| Max. output voltage Uo | ≤ 30 V |
| Safety-related maximum voltage Um | 250 V |
Dimensions
| Width | 113.4 mm |
| Height | 127.5 mm |
| Depth | 92 mm |
| Depth NS 35/7,5 | 142.5 mm (with NS 35/7.5 coupling connector) |
| Depth NS 32 | 147.5 mm (with NS 32 coupling connector) |
| Depth NS 35/15 | 150 mm (with NS 35/15 coupling connector) |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Housing insulation material | Polyamide PA non-reinforced, polycarbonate PC, PVC |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
CE
| Certificate | CE-compliant |
ATEX
| Identification | II (1) G [Ex ia Ga] IIC |
| Identification | II (1) D [Ex ia Da] IIIC |
| Identification | II 3 (1) G Ex nA [ia Ga] IIC T4 Gc |
| Certificate | KEMA 99ATEX7296 |
| Certificate | PxCIF08ATEX2835325X |
EAC Ex
| Identification | [Ex ia Ga] IIC |
| Certificate | RU C-DE.AB72.B.00097/19 |
Mounting
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 2865146?
Proax is an authorized distributor of Phoenix Contact 2865146 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
