2311894
Official DistributorSKU
PHX2311894
MPN
UM122-2KS40/AI16/MINI-MCR
Series UM122

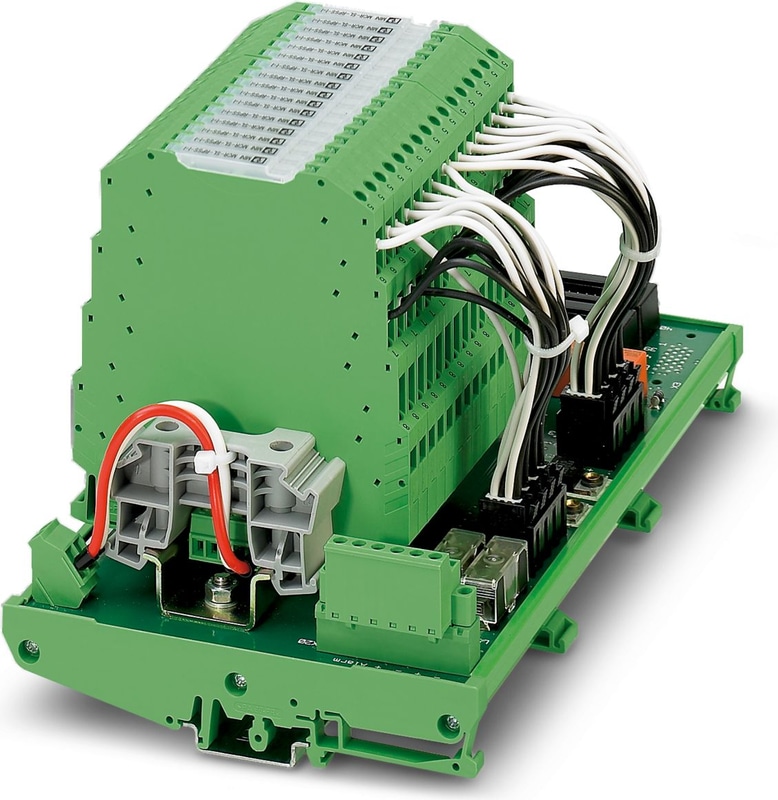

UM122-2KS40/AI16/MINI-MCR - Motherboard
MINI Analog-Motherboard for connection to Yokogawa analog modules AAI 141 and AAI 143. Equipped with MINI MCR-SL-RPSS-I-I. Redundant supply with alarming possible in the case of supply failure. Accessories: Yokogawa Centum CS3000 R3 system cable.
Technical Specifications
Electrical properties
| Rated Insulation Voltage | 50 V |
Field level
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm |
Controller level
| Connection Method | Yokogawa KS-compatible |
| Number of Connections | 2 |
| Number of Positions | 40 |
| Note | Usable system cables: Phoenix Contact YUC40, Yokogawa KS1 |
Dimensions
| Width | 218 mm |
| Height | 128 mm |
| Depth | 140 mm |
Ambient conditions
| Ambient Temperature (Operation) | 0 °C ... 50 °C |
Standards and Regulations
| Standards/regulations | EN 50178 |
Mounting
| Mounting Position | any |
Why Proax for Phoenix Contact 2311894?
Proax is an authorized distributor of Phoenix Contact 2311894 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
