2835655
Official DistributorSKU
PHX2835655
MPN
UM122-2FLK14/PI-ES/8/IN/S7
Weight
0.458 kg
This product is Not Cancellable/Not Returnable
Series UM122

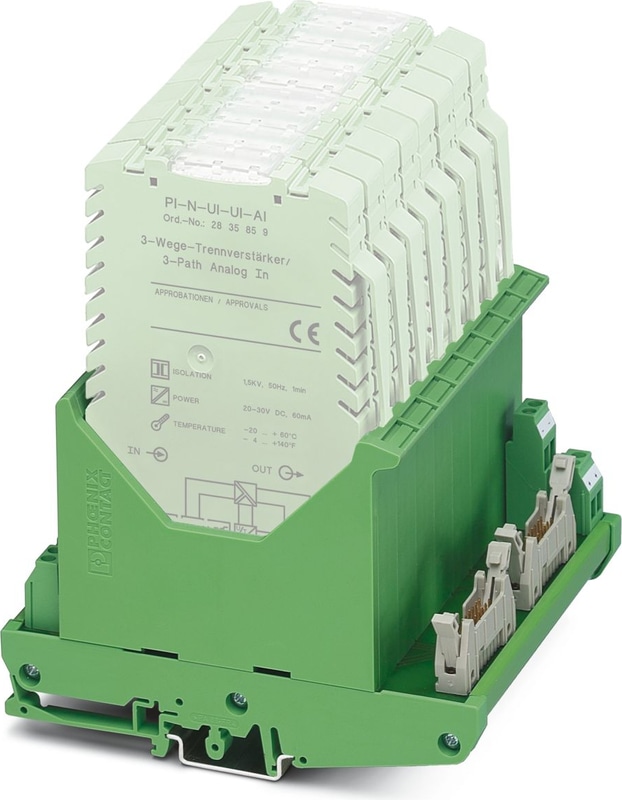

UM122-2FLK14/PI-ES/8/IN/S7 - Basic terminal block
Analog IN-motherboard for S7-300, to hold PI-C-UI-UI-AI, mounting on NS 32, or NS 35/7.5.
Technical Specifications
Product properties
| Application | Base element |
Electrical properties
| Nominal voltage UN | 20 V DC ... 35 V DC |
| Nominal current IN | 60 mA (max. current consumption) |
| Reverse polarity protection | yes |
Dimensions
| Width | 113.4 mm |
| Height | 127.5 mm |
| Depth | 82.6 mm |
| Depth NS 35/7,5 | 142.5 mm (with NS 35/7.5 coupling connector) |
| Depth NS 32 | 147.5 mm (with NS 32 coupling connector) |
| Depth NS 35/15 | 150 mm (with NS 35/15 coupling connector) |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing insulation material | Polyamide PA non-reinforced, polycarbonate PC |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
CE
| Certificate | CE-compliant |
Mounting
| Mounting Type | DIN rail mounting |
Why Proax for Phoenix Contact 2835655?
Proax is an authorized distributor of Phoenix Contact 2835655 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
