Interface modules, SC-RJ for POF/PCF, diagnosis-capable
2891084
Official DistributorSKU
PHX2891084
MPN
FL IF 2POF SCRJ-D
Weight
0.1 kg
Series FL-IF

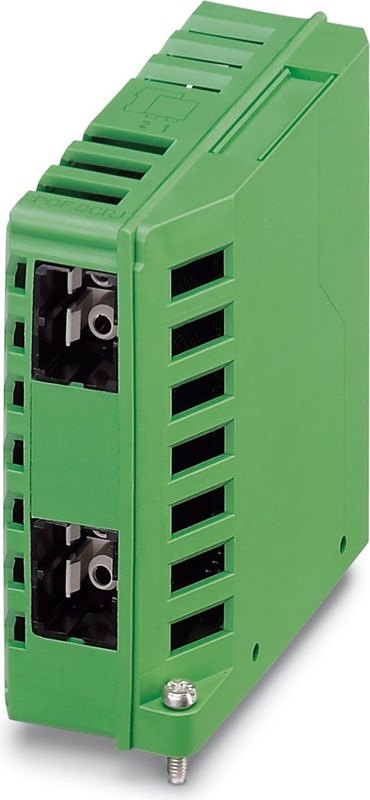

FL IF 2POF SCRJ-D - Media module
Fiber optic interface module for connecting 100 Base-FX POF/PCF fibers (650 nm), SC-RJ, connection direction downward
- Fiber optic modules that can be diagnosed in PROFINET for electrically isolated transmission
Technical Specifications
Product properties
| Type | fine granularity |
Functionality
| Basic Functions | Media module for Modular Managed Switch with FO diagnosis |
Electrical properties
| Maximum power dissipation for nominal condition | 21.6 W |
| Transmission medium | FO |
Supply
| Supply voltage (DC) | 48 V DC (via head station) |
| Power supply connection | From FL SWITCH GHS or FXT |
| Typical current consumption | 200 mA |
Brake to be connected
| Connection Method | Can be plugged onto FL SWITCH MM HS or FL MXT |
Connection data
| Connection Method | Can be plugged onto FL SWITCH MM HS or FL MXT |
Interfaces
| Transmission length | max. 50 m (including 3 dB system reserve, polymer fiber with 980/1000 230 dB/km) |
Fiber optic interface
| Connection Method | SC-RJ |
| Transmission Speed | 100 Mbps |
| Transmission length | 50 m (including 3 dB system reserve, polymer fiber with F-K 980/1000 230 dB/km) |
| Transmission length | 100 m (PCF fiber with F-S 200/230 10 dB/km) |
| No. of channels | 2 (SC-RJ) |
Dimensions
| Width | 31 mm |
| Height | 73.5 mm |
| Depth | 72.5 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
EMC data
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-3/-4 |
Mounting
| Mounting Type | In the host system |
Accessories
VS-PC-2X-POF-980-SCRJ/FSMA-1 - Assembled FO cable, break-out cable, polymer fiber 980/1000 µm, SC-RJ/IP20 on FSMA/IP20, for installation inside the control cabinets, the conductor is suitable for the UV-protected outside insert, length: 1 m- VS-PC-2X-POF-980-SCRJ/FSMA-2 - Assembled FO cable, break-out cable, polymer fiber 980/1000 µm, SC-RJ/IP20 on FSMA/IP20, for installation inside the control cabinets, the conductor is suitable for the UV-protected outside insert, length: 2 m
- VS-PC-2X-POF-980-SCRJ/FSMA-5 - Assembled FO cable, break-out cable, polymer fiber 980/1000 µm, SC-RJ/IP20 on FSMA/IP20, for installation inside the control cabinets, the conductor is suitable for the UV-protected outside insert, length: 5 m
VS-PC-2XPOF-980-SCRJ/SCRJ-1 - Assembled FO cable, breakout cable, 980/1000 µm polymer fiber, SC-RJ/IP20 to SC-RJ/IP20, for installation inside control cabinets, the cable is suitable for UV-protected outdoor use, length: 1 m- VS-PC-2XPOF-980-SCRJ/SCRJ-5 - Assembled FO cable, breakout cable, 980/1000 µm polymer fiber, SC-RJ/IP20 to SC-RJ/IP20, for installation inside control cabinets, the cable is suitable for UV-protected outdoor use, length: 5 m
