Official DistributorSKU
MPN
FL IF 2TX VS-RJ-F
Weight
0.095 kg
Series FL-IF

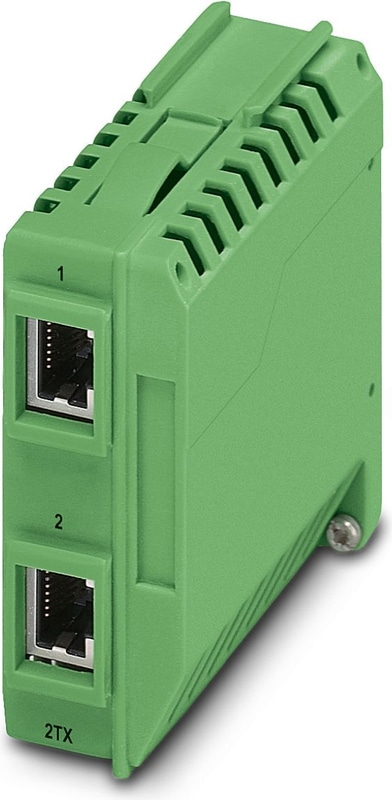

FL IF 2TX VS-RJ-F - Media module
Interface module for connecting twisted pair cable, RJ45, connection direction forward
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Type | Stand-Alone |
Functionality
| Basic Functions | Media module for modular managed switch |
Electrical properties
| Maximum power dissipation for nominal condition | 21.6 W |
| Transmission medium | Copper |
Supply
| Supply Voltage | via head station |
| Power supply connection | From FL SWITCH GHS or FXT |
| Typical current consumption | 10 mA |
Ethernet
| Connection Method | RJ45 |
| Transmission Speed | 10/100 Mbps (connection direction forwards) |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | 100 m (per segment) |
| No. of channels | 2 (RJ45 ports) |
| Transmission Speed | 10/100 Mbps (connection direction forwards) |
| Transmission length | 100 m (per segment) |
Dimensions
| Width | 31 mm |
| Height | 75.7 mm |
| Depth | 75.5 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA 6.6 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -20 °C ... 80 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
EMC data
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B |
| Conformance with EMC directives | IEC 61000-4-3 (immunity to radiated interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-4 (burst) Criterion A |
| Conformance with EMC directives | IEC 61000-4-5 (surge) Criterion A |
| Conformance with EMC directives | IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-8 (immunity to magnetic fields) Criterion A |
| Conformance with EMC directives | EN 55022 (emitted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-3/-4 |
Standards and Regulations
| Free from substances that could impair the application of coating | In acc. with VW specification |
Mounting
| Mounting Type | In the host system |
Accessories
CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm2, solid conductor, shielded, outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter
FL CAT5 FLEX - By the meter, Installation cable, Ethernet CAT5 (100 Mbps), shielded, PUR halogen-free, water blue RAL 5021, 4-wire (2x2xAWG26/7, SF/UTP), color single wire: white/orange-orange, white/green-green, cable length: Free entry (1.0 ... 1000.0 m)
FL CRIMPTOOL - Crimping pliers, for assembling the RJ45 plugs FL PLUG RJ45..., for assembly on site
