Official DistributorSKU
MPN
FL IF 2PSE-F
Weight
0.106 kg
Series FL-IF

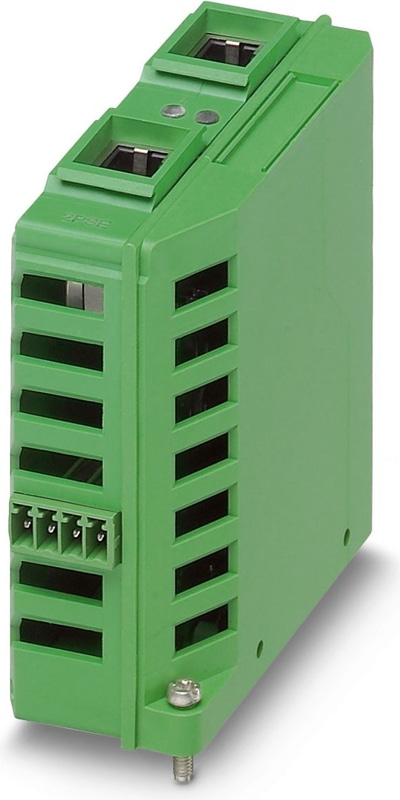

FL IF 2PSE-F - Media module
Interface module for connecting PoE twisted pair ports, RJ45, connection direction forward
- IEEE 802.3af
- Suitable for GHS system
Technical Specifications
Product properties
| Type | Block design |
Functionality
| Basic Functions | Media module for Modular Managed Switch with Power over Ethernet IEEE802.3af, Power Source Equipment (PSE) |
Electrical properties
| Maximum power dissipation for nominal condition | 21.6 W |
| Test voltage | 500 V AC |
| Transmission medium | Copper |
Supply
| Supply Voltage | 48 V DC (Internal / 48 V DC for PoE) |
| Supply Voltage Range | 45.5 V DC ... 53 V DC |
| Power supply connection | From FL SWITCH GHS or FXT |
| Typical current consumption | 10 mA (max. 900 mA) |
Brake to be connected
| Connection Method | Can be plugged onto FL SWITCH MM HS or FL MXT |
Supply: Module electronics
| Connection Method | COMBICON |
| Supply Voltage | 48 V DC (via COMBICON; max. conductor cross section 2.5 mm²) |
| Supply Voltage Range | 44 V DC ... 53 V DC |
| Current consumption | max. 850 mA |
Connection data
| Connection Method | Can be plugged onto FL SWITCH MM HS or FL MXT |
Ethernet
| Connection Method | RJ45 |
| Transmission Speed | 10/100 Mbps (connection direction forwards) |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission length | 100 m (per segment) |
| No. of channels | 2 (PoE ports) |
| Transmission Speed | 10/100 Mbps (connection direction forwards) |
| Transmission length | 100 m (per segment) |
| No. of channels | 2 |
Dimensions
| Width | 31 mm |
| Height | 84.7 mm |
| Depth | 75.5 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA 6.6 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
EMC data
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B |
| Conformance with EMC directives | IEC 61000-4-3 (immunity to radiated interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-4 (burst) Criterion A |
| Conformance with EMC directives | IEC 61000-4-5 (surge) Criterion A |
| Conformance with EMC directives | IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-8 (immunity to magnetic fields) Criterion A |
| Conformance with EMC directives | EN 55022 (emitted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-3/-4 |
Standards and Regulations
| Free from substances that could impair the application of coating | In acc. with VW specification |
Mounting
| Mounting Type | In the host system |
Accessories
CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm2, solid conductor, shielded, outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter
FL CAT5 FLEX - By the meter, Installation cable, Ethernet CAT5 (100 Mbps), shielded, PUR halogen-free, water blue RAL 5021, 4-wire (2x2xAWG26/7, SF/UTP), color single wire: white/orange-orange, white/green-green, cable length: Free entry (1.0 ... 1000.0 m)
FL CRIMPTOOL - Crimping pliers, for assembling the RJ45 plugs FL PLUG RJ45..., for assembly on site
STEP-PS/ 1AC/48DC/2 - Primary-switched power supply, STEP POWER, screw connection, DIN rail mounting, input: 1-phase, output: 48 V DC / 2 A, adjustable from 30 V DC ... 56 V DC, PoE application up to 96 W
TRIO-PS/1AC/48DC/ 5, TRIO POWER power supplies with standard functionalityTRIO POWER is particularly suited to standard machine production, thanks to 1- and 3-phase versions up to 960 W. The wide-range input and the international approval package enable worldwide use.The robust metal housing, the high electric strength, and the wide temperature range ensure a high level of power supply reliability.
QUINT-PS/1AC/48DC/ 5 - Primary-switched power supply unit QUINT POWER, Pluggable screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 48 V DC / 5 A
