Official DistributorSKU
MPN
FL IF 2POF 10/100-D
Weight
0.089 kg
Series FL-IF

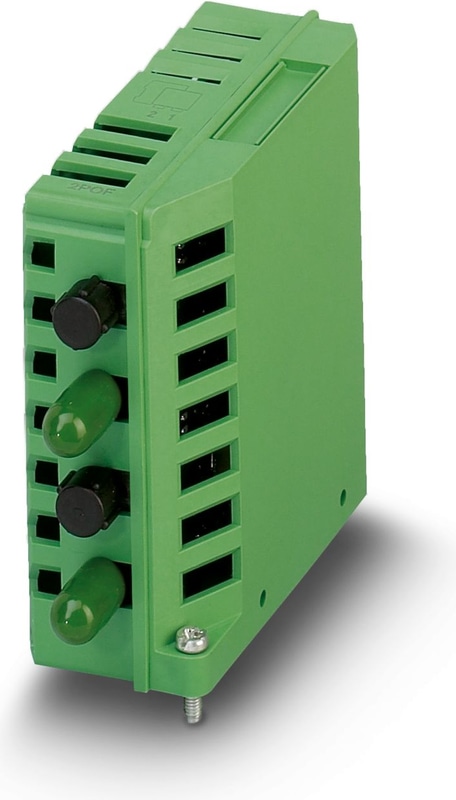

FL IF 2POF 10/100-D - Media module
Interface module, 2 ports, 10/100 Mbps, auto negotiation for the Modular Managed Switch System, exit downward
Technical Specifications
Product properties
| Type | fine granularity |
Functionality
| Basic Functions | Media module for modular managed switch |
Electrical properties
| Electrical isolation | 10BASE-F/100BASE-FX//Supply |
| Transmission medium | FO |
Supply
| Supply Voltage | via head station |
| Power supply connection | From FL SWITCH MM HS or MXT |
| Typical current consumption | 100 mA |
Brake to be connected
| Connection Method | Can be plugged onto FL SWITCH MM HS or FL MXT |
Connection data
| Connection Method | Can be plugged onto FL SWITCH MM HS or FL MXT |
Ethernet
| Connection Method | FSMA plugs |
| Transmission Speed | 10/100 Mbps (connection direction downwards) |
| Transmission length | max. 50 m (including 3 dB system reserve, polymer fiber with 980/1000 230 dB/km) |
| No. of channels | 2 |
Fiber optic interface
| Connection Method | F-SMA connector |
| Transmission Speed | 10/100 Mbps |
| Transmission length | 50 m (including 3 dB system reserve, polymer fiber with 980/1000 230 dB/km) |
| Wavelength | 650 nm |
| No. of channels | 2 |
Dimensions
| Width | 31 mm |
| Height | 80.3 mm |
| Depth | 72.5 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
EMC data
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B |
| Conformance with EMC directives | IEC 61000-4-3 (immunity to radiated interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-4 (burst) Criterion A |
| Conformance with EMC directives | IEC 61000-4-5 (surge) Criterion A |
| Conformance with EMC directives | IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-8 (immunity to magnetic fields) Criterion A |
| Conformance with EMC directives | EN 55022 (emitted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
| Noise emission | EN 61000-6-3/-4 |
Standards and Regulations
| Electrical isolation | 10BASE-F/100BASE-FX//Supply |
Mounting
| Mounting Type | In the host system |
