Official DistributorSKU
MPN
VS-PC-2XPOF-980-SCRJ/SCRJ-5
Weight
0.075 kg
Series VS-PC

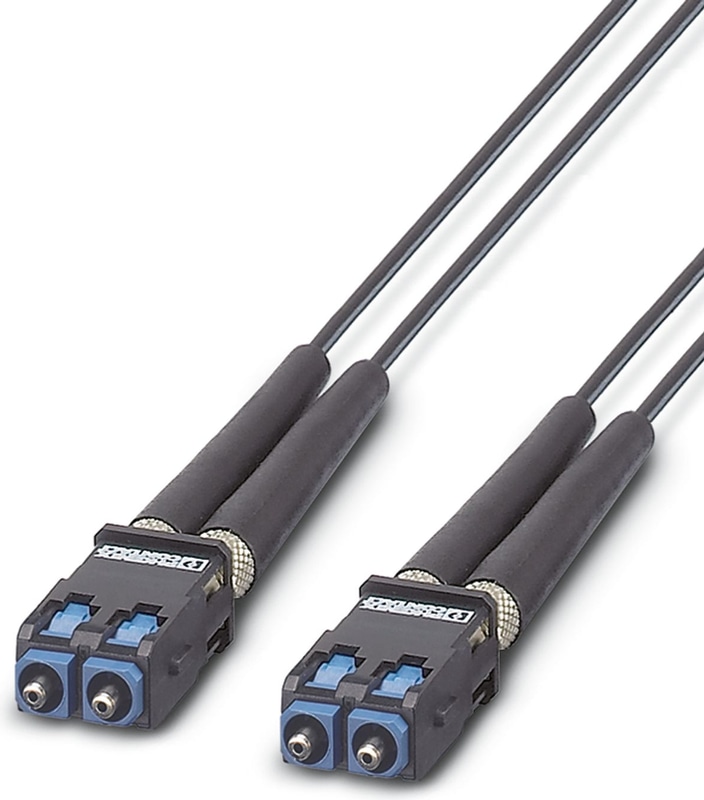

VS-PC-2XPOF-980-SCRJ/SCRJ-5 - FO connecting cable
Assembled FO cable, breakout cable, 980/1000 µm polymer fiber, SC-RJ/IP20 to SC-RJ/IP20, for installation inside control cabinets, the cable is suitable for UV-protected outdoor use, length: 5 m
- Reliable data transmission, thanks to high quality
- Fast data transmission for demanding applications
- Particularly suitable in EMC-sensitive applications
- Space savings in the control cabinet, thanks to SC-RJ connectors
- Preassembled patch cable for easy use
Technical Specifications
Product properties
| Sensor Type | Ethernet |
| Number of Positions | 2 |
| Connection profile | SCRJ in accordance with DIN EN 50377-6-1 |
| Number of slots | 2 |
Electrical properties
| Attenuation | < 2.5 dB (with 660 nm) |
| Transmission medium | FO |
Mechanical data
| Insertion/withdrawal cycles | ≥ 1000 |
Material specifications
| Housing Material | PBT |
| Contact Material | Phosphor bronze |
| Outer sheath, material | PE |
Connection technology
| Connection Method | POF SC-RJ |
Conductor connection
| Connection Method | POF SC-RJ |
Connection 1
| Type | Plug straight SC-RJ |
| Handle color | black |
| Insertion/withdrawal cycles | ≥ 1000 |
| Degree of Protection | IP20 |
Connection 2
| Type | Plug straight SC-RJ |
| Degree of Protection | IP20 |
Cable/line
| Cable Length | 5.00 m |
| Cable Type | Polymer fiber (980 / 1000 µm) |
| Cable Type | Break-out cable |
| Outer sheath, material | PE |
| External sheath, color | black |
| Smallest bending radius, fixed installation | 30 mm |
| Smallest bending radius, movable installation | 30 mm |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
FO cable
| Number of fibers | 2 |
| Fiber | Polymer fiber, 980/1000 µm |
| Fiber type | POF fiber A4A |
| Transmission medium | Multi-mode fiberglass |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
Accessories
VS-SCRJ-GOF-BU/BU - SC-RJ socket insert, duplex, for VS-A-F-IP67 panel mounting frame, can be used for fiberglass (multi-mode and single mode), PCF, and polymer fibers
VS-PPC-F1-SCRJ-MNNA-1C-F - Push-pull panel mounting frame, IP67, metal, with Freenet system, for round mounting cutout, with seal and SC-RJ coupling (for POF, PCF, and GOF)
VS-PP-F-SCRJ - Patch panel, SC-RJ, DIN rail mounting, IP20, 1 slot, socket/socket, can be used for glass, multi-mode, PCF, and polymer fibers
Why Proax for Phoenix Contact 1656479?
Proax is an authorized distributor of Phoenix Contact 1656479 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
