Official DistributorSKU
MPN
VS-PC-2XGOF-50-SCRJ/SCDU-1
Weight
0.034 kg
This product is Not Cancellable/Not Returnable
This product has been discontinued
Series VS-PC

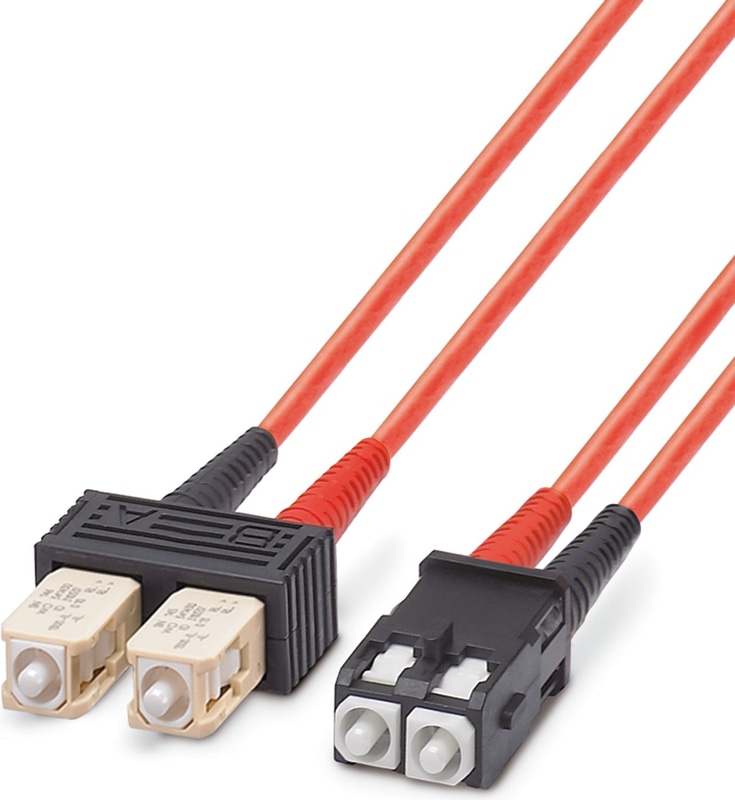

VS-PC-2XGOF-50-SCRJ/SCDU-1 - Fiber optic cables
Assembled fiber optic cable, break-out cable, fiberglass multi-mode 50/125 µm, SC-RJ/IP20 on SC-duplex/IP20, for installation inside control cabinets, length: 1 m
Technical Specifications
Product properties
| Sensor Type | Ethernet |
| Number of Positions | 2 |
Electrical properties
| Attenuation | ≤ 0.5 dB |
Material specifications
| Housing Material | PBT |
| Outer sheath, material | LSZH |
Connection 1
| Type | Plug straight SC-RJ |
| Degree of Protection | IP20 |
Connection 2
| Type | Plug straight SC duplex |
| Degree of Protection | IP20 |
Cable/line
| Cable Length | 1.00 m |
| Cable Type | Break-out cable |
| Outer sheath, material | LSZH |
| External sheath, color | orange |
| Smallest bending radius, fixed installation | 60 mm |
| Smallest bending radius, movable installation | 60 mm |
FO cable
| Number of fibers | 2 |
| Fiber type | GOF |
| Transmission medium | FO |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -5 °C ... 70 °C |
Why Proax for Phoenix Contact 1654400?
Proax is an authorized distributor of Phoenix Contact 1654400 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
