1654950
Official DistributorSKU
PHX1654950
MPN
VS-PC-2XHCS-200-SCRJ/SCRJ-5
Weight
0.167 kg
This product is Not Cancellable/Not Returnable
Series VS-PC

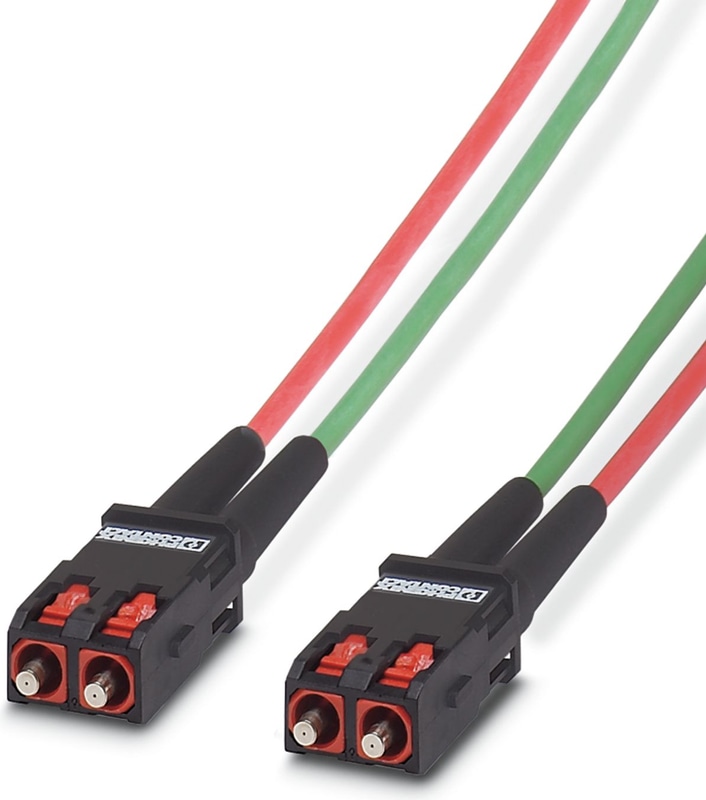

VS-PC-2XHCS-200-SCRJ/SCRJ-5 - FO connecting cable
Assembled FO cable, breakout cable, 200/230 µm PCF fiber, SC-RJ/IP20 to SC-RJ/IP20, for installation inside control cabinets, length: 5 m
Technical Specifications
Product properties
| Sensor Type | Ethernet |
| Number of Positions | 2 |
| Connection profile | SCRJ in accordance with DIN EN 50377-6-1 |
Electrical properties
| Attenuation | ≤ 1.2 dB (with 850 nm) |
| Transmission medium | PCF fiber |
Mechanical characteristics
| Ferrule diameter | 2.50 mm |
Material specifications
| Housing Material | PBT |
| Outer sheath, material | TPE-O |
Connection 1
| Type | Plug straight SC-RJ |
| Degree of Protection | IP20 |
Connection 2
| Type | Plug straight SC-RJ |
| Degree of Protection | IP20 |
Cable/line
| Cable Type | Breakout |
| Outer sheath, material | TPE-O |
| External sheath, color | orange |
| Individual wire diameter | 2.2 mm |
| Smallest bending radius, fixed installation | 50 mm |
| Smallest bending radius, movable installation | 50 mm |
| Resistance to Oil | yes |
| Flame resistance | yes, in accordance with IEC 60332-1-2 and in accordance with IEC 60332-3-22 Cat A |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
FO cable
| Number of fibers | 2 |
| Fiber | 200/230 µm |
| Fiber type | PCF fiber A3C |
| Cable, attenuation | 10 dB/km (650 nm), 8 dB/km (at 850 nm) |
| Transmission medium | PCF fiber |
Mechanical data
| Insertion/withdrawal cycles | ≥ 1000 |
Characteristics
| Attenuation | ≤ 1.2 dB (with 850 nm) |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Resistance to Oil | yes |
Standards and Regulations
| Flame resistance | yes, in accordance with IEC 60332-1-2 and in accordance with IEC 60332-3-22 Cat A |
| Resistance to Oil | yes |
Why Proax for Phoenix Contact 1654950?
Proax is an authorized distributor of Phoenix Contact 1654950 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
