Official DistributorSKU
MPN
VS-PC-2X-POF-980-SCRJ/FSMA-5
Weight
0.076 kg
This product is Not Cancellable/Not Returnable
Series VS-PC

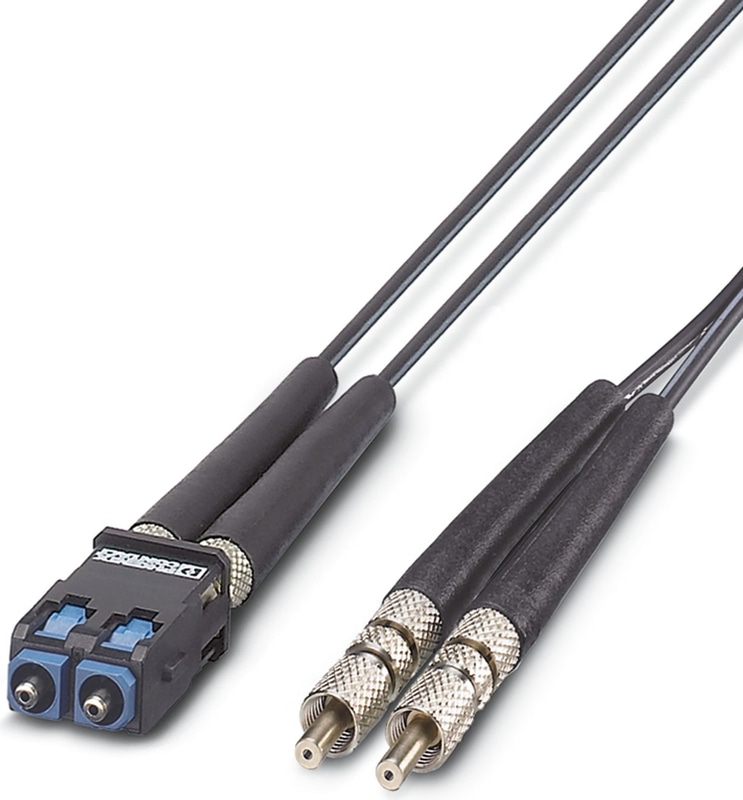

VS-PC-2X-POF-980-SCRJ/FSMA-5 - FO connecting cable
Assembled FO cable, break-out cable, polymer fiber 980/1000 µm, SC-RJ/IP20 on FSMA/IP20, for installation inside the control cabinets, the conductor is suitable for the UV-protected outside insert, length: 5 m
Technical Specifications
Product properties
| Sensor Type | Ethernet |
| Number of Positions | 2 |
| Connection profile | SCRJ in accordance with DIN EN 50377-6-1 |
| Number of slots | 2 |
Electrical properties
| Attenuation | < 2.5 dB (with 660 nm) |
| Transmission medium | FO |
Connection data
| Connection Method | POF SC-RJ |
Material specifications
| Housing Material | PBT/nickel silver |
| Outer sheath, material | PE |
Connection 1
| Type | Plug straight SC-RJ |
| Degree of Protection | IP20 |
Connection 2
| Type | Plug straight FSMA |
| Degree of Protection | IP20 |
Cable/line
| Cable Type | Polymer fiber (980 / 1000 µm) |
| Cable Type | Break-out cable |
| Outer sheath, material | PE |
| External sheath, color | black |
| Smallest bending radius, fixed installation | 30 mm |
| Smallest bending radius, movable installation | 30 mm |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
FO cable
| Number of fibers | 2 |
| Fiber | Polymer fiber, 980/1000 µm |
| Fiber type | POF fiber A4A |
| Transmission medium | FO |
Mechanical data
| Insertion/withdrawal cycles | ≥ 1000 |
Characteristics
| Attenuation | < 2.5 dB (with 660 nm) |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
Why Proax for Phoenix Contact 1657122?
Proax is an authorized distributor of Phoenix Contact 1657122 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
