Phoenix Contact 1658121
AllConnectorsData connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
VS-PP-F-SCRJ
Weight
0.048 kg
This product is Not Cancellable/Not Returnable

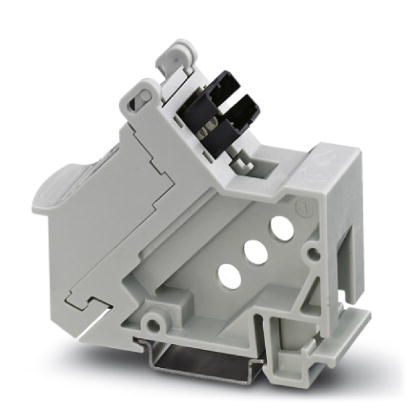

DIN rail adapter - VS-PP-F-SCRJ

Patch panel, SC-RJ, DIN rail mounting, IP20, 1 slot, socket/socket, can be used for glass, multi-mode, PCF, and polymer fibers

  • DIN rail mounting
  • Compact dimensions
  • Individual marking field
  • Suitable for all fiber types
Technical Specifications

Mechanical characteristics

Connection MethodCoupling
Number of slots1
Minimum external conductor diameter4.5 mm
Maximum external conductor diameter9 mm
Weight48.3 g
TypeSC-RJ
Flammability rating according to UL 94V0

Ambient conditions

Ambient Temperature (Operation)-10 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C
Degree of ProtectionIP20

Material data

Housing MaterialPC-GF
Width26.8 mm
Height71 mm
Length81.4 mm
Mounting TypeDIN rail mounting

Electrical characteristics

Number of Positions2
Insertion/withdrawal cycles≥ 500

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
