Official DistributorSKU
MPN
VS-PP-F-RJ45-CAT6
Weight
0.061 kg
Series VS-PP-F-RJ45

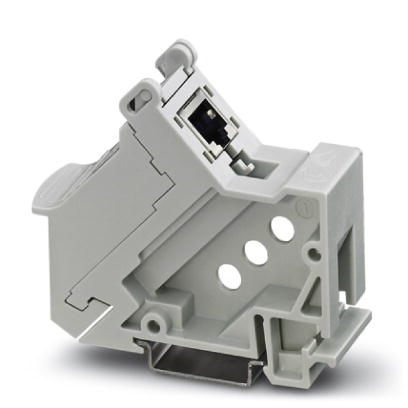

DIN rail adapter VS-PP-F-RJ45-CAT6
DIN rail adapter, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT6, material: PC-GF, connection method: IDC fast connection, connection cross section: AWG 24- 22, color: gray
- DIN rail mounting
- assembly without special tools
- DIN rail adapter
- DIN 43880
- Easy mounting
Technical Specifications
Mechanical characteristics
| Number of Positions | 8 |
| Number of slots | 1 |
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 750 |
| Connection Method | IDC fast connection |
| Conductor Cross Section | 0.2 mm² ... 0.32 mm² |
| Connection cross section AWG | 24 ... 22 |
| External Cable Diameter | 4.5 mm ... 8 mm |
| Color | gray |
| Mounting Type | DIN rail mounting |
| Insulation resistance | ≥ 500 MΩ |
| Degree of Protection | IP20 |
| No. of cable outlets | 1 |
Ambient conditions
| Ambient Temperature (Operation) | -10 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Degree of Protection | IP20 |
Material data
| Flammability rating according to UL 94 | V0 |
| Housing Material | PC-GF |
| Contact carrier material | PC |
| Contact Material | Copper alloy |
| Contact surface material | Gold over nickel |
| Height | 71 mm |
Electrical characteristics
| Number of Positions | 8 |
| Transmission characteristics (category) | CAT6 |
| GRP transmission properties | CAT6 |
| Transmission Speed | 1 Gbps |
| Frequency Range | 250 MHz |
| Rated current | 1 A |
| Rated voltage (III/3) | 50 V |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
1652936 - RJ45 jack insert, design: RJ45, degree of protection: IP20, number of positions: 8, CAT5, material: Metal, connection method: IDC connection, connection cross section: AWG 24- 22, Ethernet
1416389 - Data cable, PROFINET CAT5 (100 Mbps), 4-position, PVC/PVC, green RAL 6018, shielded (Aluminum-coated foil, tinned copper braided shield), free cable end, on free cable end, cable length: 100 m
1416567 - Data cable, Ethernet CAT5 (1 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded (Aluminum-coated foil, tinned copper braided shield), free cable end, on free cable end, cable length: 100 m
1212487 - Electronic diagonal cutter, tapered head, without chamfer, with opening spring, non-reflective phosphate-treated surface, punched version
1207666 - DIN rail perforated, acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
Why Proax for Phoenix Contact 1658118?
Proax is an authorized distributor of Phoenix Contact 1658118 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
