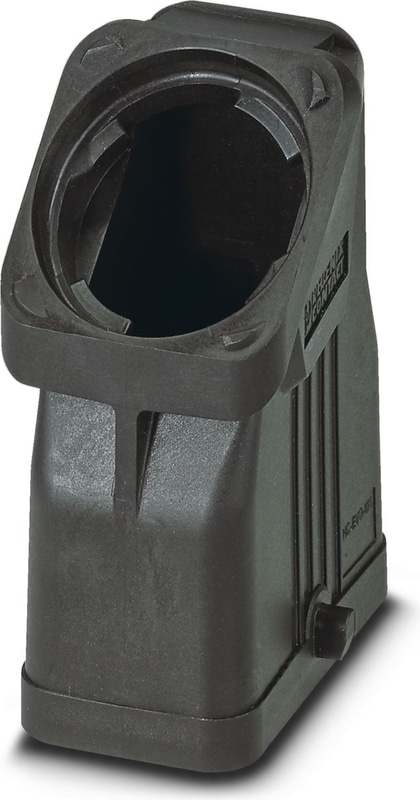

HC-EVO-M1-HHFS-PLBK - Housing
Sleeve housing, plastic, with bayonet flange for EVO-D screw connection, M1, for single locking latch, for modular contact inserts with single module width, without EVO screw connection
Technical Specifications
Notes
| General | for single module width modular contact inserts from the HEAVYCON modular system |
Product properties
| Housing type | Sleeve housing |
| Application | Standard |
| Type | M1 |
| No. of cable outlets | 1 |
| Protective cover | no |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | none |
Dimensions
| Width | 30.4 mm |
| Height | 72 mm |
| Length | 50 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Housing) |
| Housing Material | PA |
| Impact strength | IK06 |
Mechanical data
| Locking Type | Pin |
Mounting
| Assembly instructions | The housing can accommodate all Phoenix Contact modules with a single module width. Exception: Push-in TWIN modules with Order Numbers 1423962 and 1423961 may not be used due to the lack of rotation protection. |
| Assembly instructions | The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 2 sizes. It enables the creation of a straight or lateral cable outlet. The EVO screw connection is mounted by hand or with the aid of a pipe wrench, for example. |
| Assembly instructions | The housing can accommodate all Phoenix Contact modules with single module width. Exception: Push-in TWIN modules with Item No.. 1423962 and 1423961 may not be used due to the lack of rotation protection. |
Ambient conditions
| Degree of Protection | IP66 |
| Enclosure rating (NEMA) | 12 |
| Impact strength | IK06 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Accessories
HC-D-G-M20-PLRBK - EVO plastic cable gland with bayonet locking, for housing series D, size M20, cable diameter: 7 mm ... 13 mm.- HC-D-G-M25-PLRBK - EVO plastic cable gland with bayonet locking, for housing series D, size M25, cable diameter: 9 mm ... 17 mm.
HC-1/2M-UT-M-6-PE - Contact insert module, Pin, leading, Screw connection, 0.5 mm2 ... 6 mm2, application: PE transmission, for housing size HC-EVO-M1
