1411347
Official DistributorSKU
PHX1411347
MPN
HC-EVO-D25-HHFS-PL-BK
Weight
0.069 kg
This product is Not Cancellable/Not Returnable
Series HC-EVO-D

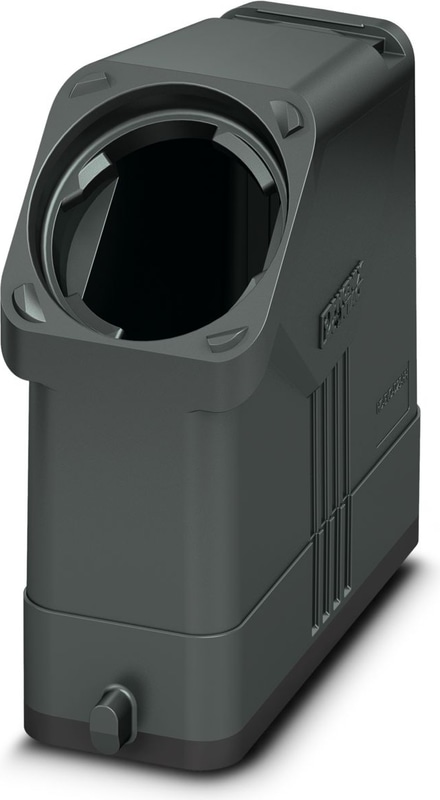

HC-EVO-D25-HHFS-PL-BK - Housing
Sleeve housing D25, for single locking latch, material: PA 6.6-FR, cable outlets: 1, straight/lateral, height: 75.5 mm, cable gland: none, protective cover: no, Standard
- Flexible cable outlet direction, lateral or straight
- Lower costs than metal version
- Low weight
- Lower risk of condensation
Documents
Technical Specifications
Notes
| General | For contact inserts HC-D25, A16 |
Product properties
| Housing type | Sleeve housing |
| Product family | HC-EVO-D |
| Application | Standard |
| Type | D25 |
| No. of cable outlets | 1 |
| Type | Tall design |
| Protective cover | no |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | none |
Dimensions
| Width | 30 mm |
| Height | 75.5 mm |
| Length | 80 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Housing) |
| Seal material | NBR |
| Housing Material | PA 6.6-FR |
Mechanical data
| Locking Type | Pin |
Mounting
| Assembly note | The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 2 sizes. It enables the creation of a straight or lateral cable outlet. The EVO screw connection is mounted by hand or with the aid of a pipe wrench, for example. |
Ambient conditions
| Degree of Protection | IP66 |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Accessories
Why Proax for Phoenix Contact 1411347?
Proax is an authorized distributor of Phoenix Contact 1411347 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
