1411349
Official DistributorSKU
PHX1411349
MPN
HC-EVO-D25-SLWSC-2SSM25-PLR-BK
Weight
0.125 kg
Series HC-EVO-D

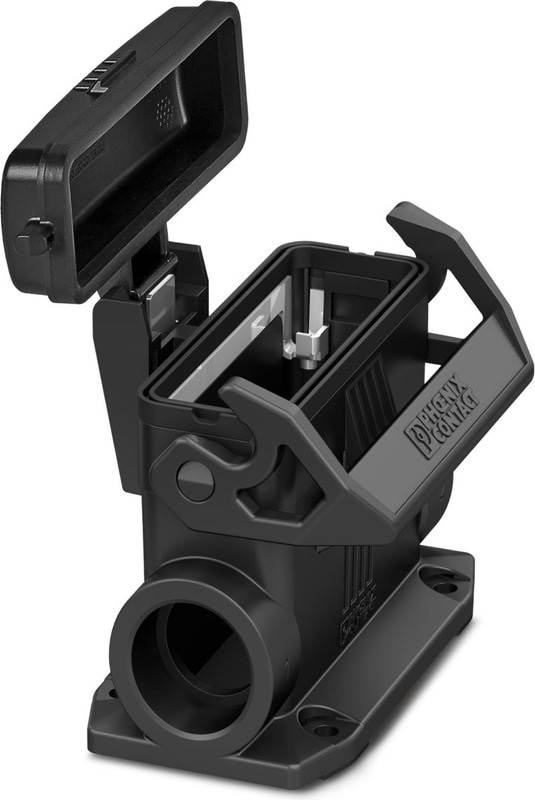

HC-EVO-D25-SLWSC-2SSM25-PLR-BK - Housing
Surface mounting housing D25, with single locking latch, material: PA 6.6-FR, protective cover material: PC, cable outlets: 2, lateral, 2x M25, height: 57 mm, cable gland: none, protective cover: yes, Standard
- Flexible cable outlet direction, lateral or straight
- Lower costs than metal version
- Low weight
- Lower risk of condensation
Documents
Technical Specifications
Notes
| General | For contact inserts HC-D25, A16 |
Product properties
| Housing type | Surface mounting housing |
| Product family | HC-EVO-D |
| Application | Standard |
| Type | D25 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M25 |
| Type | Low design |
| Protective cover | yes |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Width | 51 mm |
| Height | 57 mm |
| Length | 96.5 mm |
| Hole diameter | 4.5 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Housing) |
| Flammability rating according to UL 94 | V0 (Interlock) |
| Flammability rating according to UL 94 | V0 (Protective cover) |
| Housing Material | PA 6.6-FR |
| Material, protective cover | PC |
| Locking latch material | PA |
Mechanical data
| Type of the screw connection | 2x M25 |
| Locking Type | Latch |
Connection data
| Tightening torque | 0.8 Nm ... 1.2 Nm (for M4 mounting screws on the surface-mount housing) |
Mounting
| Assembly note | One of the two openings for the screw connections is sealed but can be broken open using a screwdriver. |
Ambient conditions
| Degree of Protection | IP66 (when plugged in or with locked protective cover) |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 1411349?
Proax is an authorized distributor of Phoenix Contact 1411349 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
