1421463
Official DistributorSKU
PHX1421463
MPN
HC-EVO-D15-SLWS-2SSM20-PLR-BK
Weight
0.09 kg
This product is Not Cancellable/Not Returnable
Series HC-EVO-D

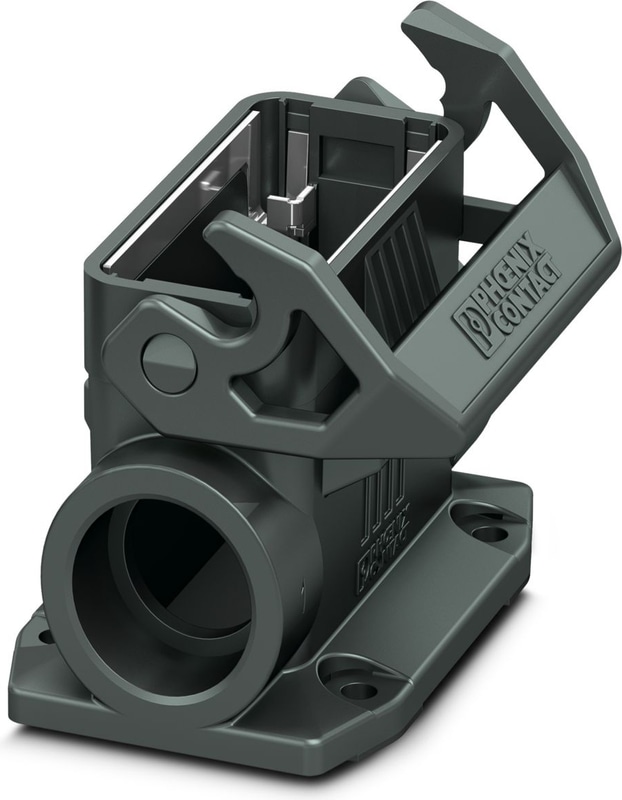

HC-EVO-D15-SLWS-2SSM20-PLR-BK - Housing
Box mounting bases D15, with single locking latch, material: PA, cable outlets: 2, lateral, 2x M20, height: 52 mm, cable gland: none, Standard, including 2x reducing adapter
- Flexible cable outlet direction, lateral or straight
- Lower costs than metal version
- Low weight
- Lower risk of condensation
Technical Specifications
Notes
| General | For contact inserts HC-D15, A10 |
Product properties
| Housing type | Box mounting bases |
| Product family | HC-EVO-D |
| Application | Standard |
| Type | D15 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M20 |
| Cable outlet | lateral |
| Pg screw connection | none |
Dimensions
| Width | 51 mm |
| Height | 52 mm |
| Length | 80 mm |
| Hole diameter | 4.5 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Housing) |
| Flammability rating according to UL 94 | V0 (Interlock) |
| Housing Material | PA |
| Locking latch material | PA |
| Impact strength | IK08 |
Mechanical data
| Type of the screw connection | 2x M20 |
| Locking Type | Latch |
Mounting
| Assembly instructions | Two M25 to M20 reducing adapters are included |
| Assembly instructions | One of the two openings for the screw connections is sealed but can be broken open using a screwdriver. |
Ambient conditions
| Degree of Protection | IP66 |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Accessories
G-INS-M20-S68N-PNES-BK - Cable gland, material for screw connection: PA, application: Standard, external cable diameter 6 mm ... 12 mm, shielding: no, connecting thread: M20 x 1.5, color: jet black RAL 9005
A-INSP-M20-65N-P-BK - Screw plug, material for screw connection: PA, connecting thread: M20 x 1.5, color: jet black RAL 9005, with O-ring
HC-D15-SL-PLBK - Replacement single locking latch, plastic, for HC-EVO-D15....BK and HC-STA-D15....AL housings
HC-M-D15-MF-HB - Module carrier frame, size: D15, 0.14 mm2 ... 2.5 mm2, application: Module carrier frame, for size D15 housings
