1424374
Official DistributorSKU
PHX1424374
MPN
HC-STA-D15-BCSFS-PLR-BK
Weight
0.023 kg
Series HC-STA-D

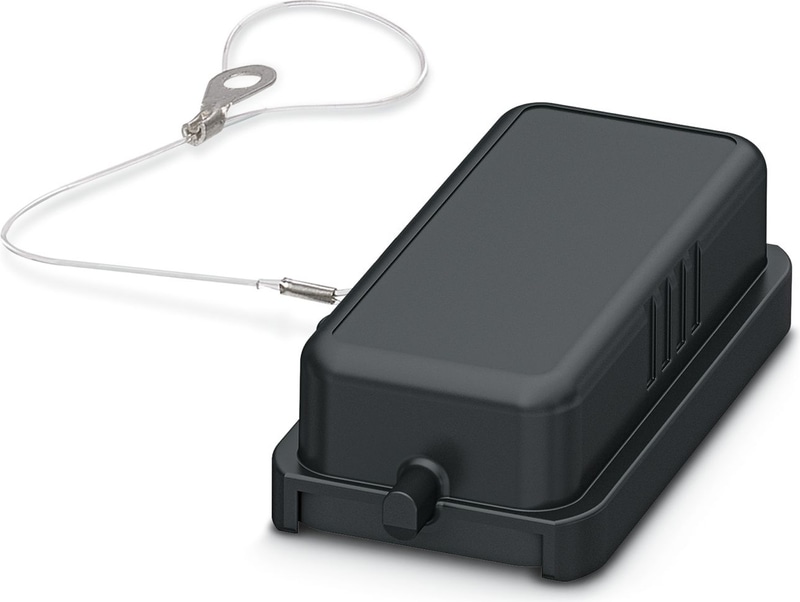

HC-STA-D15-BCSFS-PLR-BK - Protective cover
Protective cover D15, for single locking latch, protective cover material: PA, height: 19 mm
Technical Specifications
Product properties
| Housing type | Protective cover |
| Type | D15 |
| Type | for supporting base element for single locking latch |
Dimensions
| Width | 33 mm |
| Height | 19 mm |
| Length | 63.5 mm |
Material specifications
| Material Protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Material, protective cover | PA |
Mechanical data
| Locking Type | Pin |
Ambient conditions
| Degree of Protection | IP66 |
| Ambient Temperature (Operation) | -20 °C ... 100 °C |
Mounting
| Assembly instructions | Double eyelet for mounting on a cable / below screw head |
| Assembly instructions | Plastic protective cover for short-term protection |
Accessories
HC-M-D15-MF-HB - Module carrier frame, size: D15, 0.14 mm2 ... 2.5 mm2, application: Module carrier frame, for size D15 housings
