1424362
Official DistributorSKU
PHX1424362
MPN
HC-STA-D15-BWS-EL-AL
Weight
0.066 kg
This product is Not Cancellable/Not Returnable
Series HC-STA-D

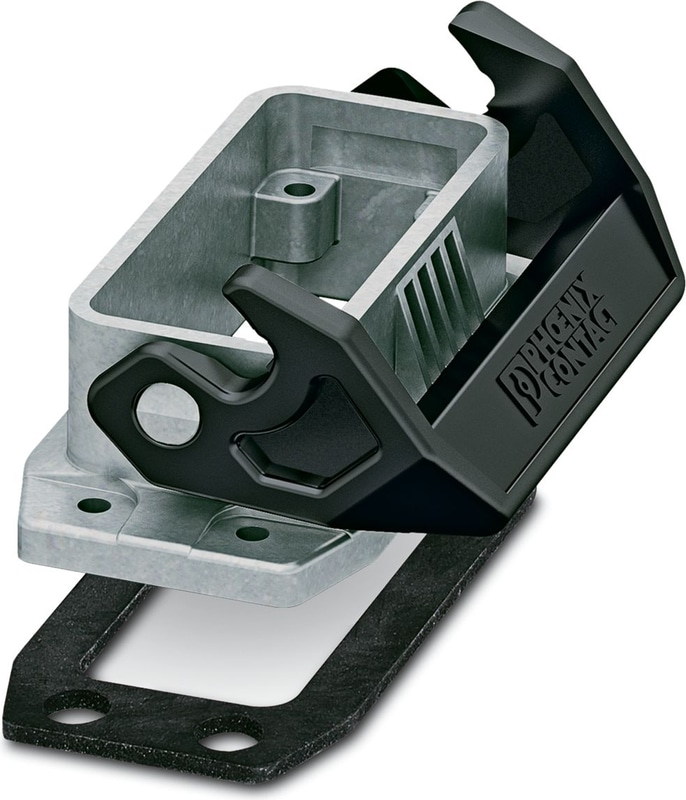

HC-STA-D15-BWS-EL-AL - Housing
Panel mounting base D15, with single locking latch, material: Die-cast aluminum, salt water resistant, height: 26 mm, cable gland: none, Standard
Technical Specifications
Notes
| General | For contact inserts HC-D15, A10 |
Product properties
| Housing type | Panel mounting base |
| Product family | HC-STA-D |
| Application | Standard |
| Type | D15 |
| Pg screw connection | none |
Dimensions
| Width | 39 mm |
| Height | 26 mm |
| Length | 82 mm |
| Hole diameter | 3.3 mm |
Installation dimensions
| Width of the assembly cutout | 24 mm |
| Length of the assembly cutout | 58 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Interlock) |
| Seal material | NBR, conductive |
| Seal material | NBR, conductive |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Locking latch material | PA |
| Impact strength | IK08 |
Mechanical data
| Locking Type | Latch |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Accessories
Why Proax for Phoenix Contact 1424362?
Proax is an authorized distributor of Phoenix Contact 1424362 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
