1411344
Official DistributorSKU
PHX1411344
MPN
HC-EVO-D25-BWS-PLR-BK
Weight
0.054 kg
This product is Not Cancellable/Not Returnable
Series HC-EVO-D

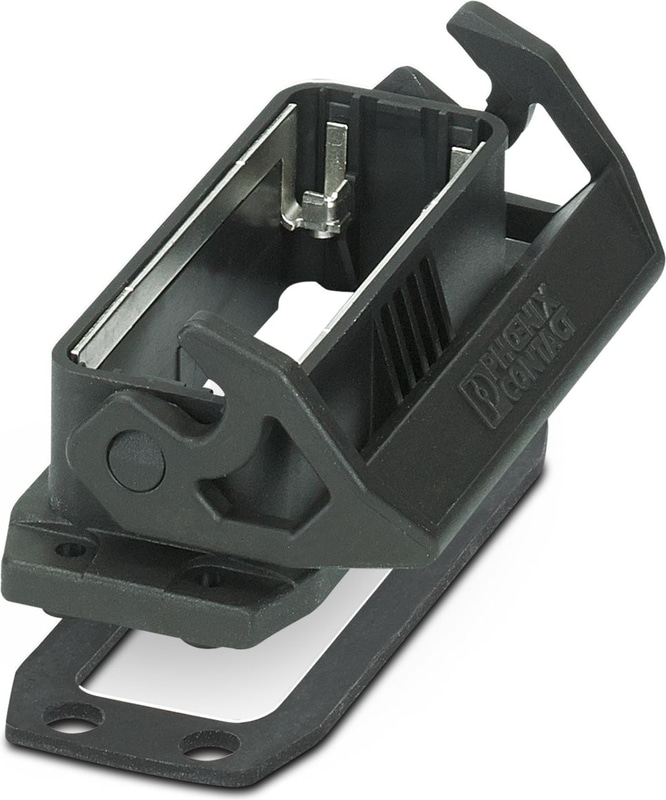

HC-EVO-D25-BWS-PLR-BK - Housing
Panel mounting base D25, with single locking latch, material: PA, height: 26 mm, cable gland: none, protective cover: no, Standard, with flat gasket
- Lower costs than metal version
- Low weight
- Lower risk of condensation
Technical Specifications
Notes
| General | For contact inserts HC-D25, A16 |
Product properties
| Housing type | Panel mounting base |
| Product family | HC-EVO-D |
| Application | Standard |
| Type | D25 |
| Protective cover | no |
| Shielded | no |
| Pg screw connection | none |
Dimensions
| Width | 39 mm |
| Height | 26 mm |
| Length | 97 mm |
| Drill hole distance, horizontal | 86 mm |
| Drill hole distance, vertical | 17.5 mm |
| Hole diameter | 3.3 mm |
Installation dimensions
| Width of the assembly cutout | 24 mm |
| Length of the assembly cutout | 74 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Housing) |
| Flammability rating according to UL 94 | V0 (Interlock) |
| Seal material | NBR |
| Housing Material | PA |
| Locking latch material | PA |
| Impact strength | IK08 |
Mechanical data
| Locking Type | Latch |
Ambient conditions
| Degree of Protection | IP66 |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 1411344?
Proax is an authorized distributor of Phoenix Contact 1411344 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
