Official DistributorSKU
MPN
PI-EX-IDS-I/I
Weight
0.119 kg

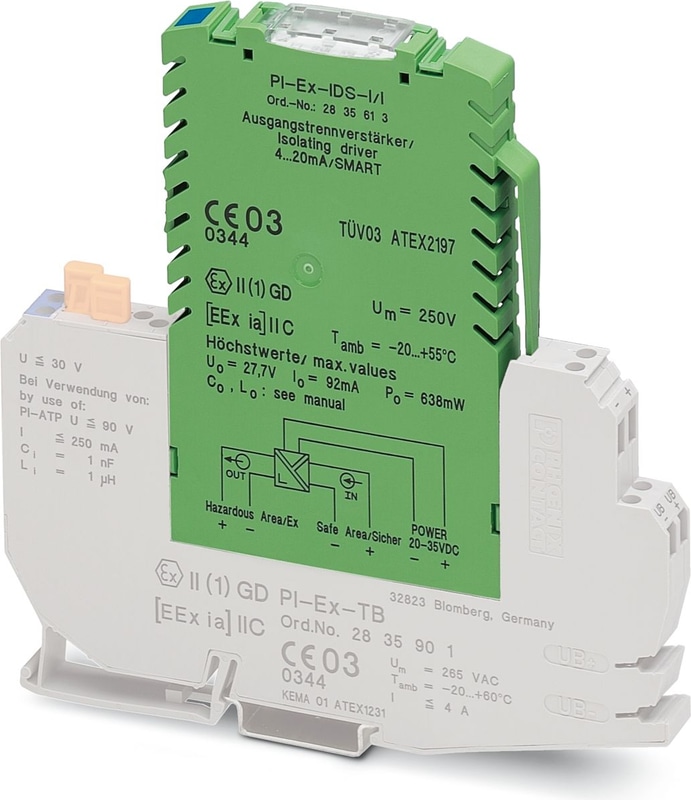

PI-EX-IDS-I/I - Signal isolator
Ex i output signal conditioner, HART-transparent. Isolates and transmits intrinsically safe 0/4 mA ... 20 mA signals to a load (I/P converters, regulating valves, displays) in the Ex area. 3-way electrical isolation (input/output/supply). Line fault detection.
Technical Specifications
Notes
| Order information: | The electronics module is plugged into a basic terminal block. |
Product properties
| Application | Analog OUT |
| No. of channels | 1 |
Electrical properties
| Electrical isolation | 3-way isolation |
| Electrical isolation between input and output | yes |
| Maximum power dissipation for nominal condition | < 1.2 W |
| Step response (10-90%) | < 140 µs |
| Maximum temperature coefficient | < 0.01 %/K |
| Maximum transmission error | ≤ 0.1 % (Of end value (at 20°C)) |
Electrical isolation Input/output
| Electrical isolation | 375 V (Peak value in accordance with IEC/EN 60079-11) |
Electrical isolation Input/power supply
| Test voltage | 1.5 kV AC (50 Hz, 60 s) |
Electrical isolation Output/supply
| Electrical isolation | 375 V (Peak value in accordance with IEC/EN 60079-11) |
Supply
| Supply Voltage Range | 20 V DC ... 35 V DC |
| Max. current consumption | < 15 mA (At 24 V DC / 0 mA) |
| Max. current consumption | < 48 mA (at 24 V DC / 20 mA) |
| Power consumption | max. 1.2 W (At 24 V DC / 20 mA) |
Signal: Current
| Number of Inputs | 1 |
| Current Input Signal | 4 mA ... 20 mA |
| Current Input Signal | 0 mA ... 20 mA |
Signal
| Output description | intrinsically safe |
| Number of Outputs | 1 |
| Current Output Signal | 4 mA ... 20 mA |
| Current Output Signal | 0 mA ... 20 mA |
| Load/Output Load Current Output | ≤ 800 Ω |
| Output ripple (current) | < 50 µAPP (For 800 Ω) |
Connection data
| Connection Method | Screw connection |
Safety data
| Max. inductance Li | 0.1 mH |
| Max. capacitance Ci | 5 nF |
| Max. output voltage Uo | 27.7 V |
| Max. output current Io | 92 mA |
| Max. output power Po | 638 mW |
| Safety-related maximum voltage Um | 250 V AC |
Data communication (bypass)
| HART Function | Yes |
| Protocols Supported | HART-transparent |
Signaling
| Status display | Green LED (supply voltage, PWR) |
Dimensions
| Width | 12.4 mm |
| Height | 145 mm |
| Depth | 147 mm |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PBT and polyamide PA non-reinforced |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 55 °C (see data sheet) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
CE
| Certificate | CE-compliant |
ATEX
| Identification | II (1) G [Ex ia Ga] IIC |
| Identification | II (1) D [Ex ia Da] IIIC |
| Identification | II 3 G Ex nA IIC T4 Gc |
| Certificate | PxCIF07ATEX2835613X |
UL, USA/Canada
| Identification | applied for |
EAC Ex
| Identification | [Ex ia Ga] IIC |
| Certificate | RU C-DE.AB72.B.00097/19 |
Standards and Regulations
| Electrical isolation | 3-way isolation |
Standards
| Standards/regulations | NAMUR recommendation NE 21 |
