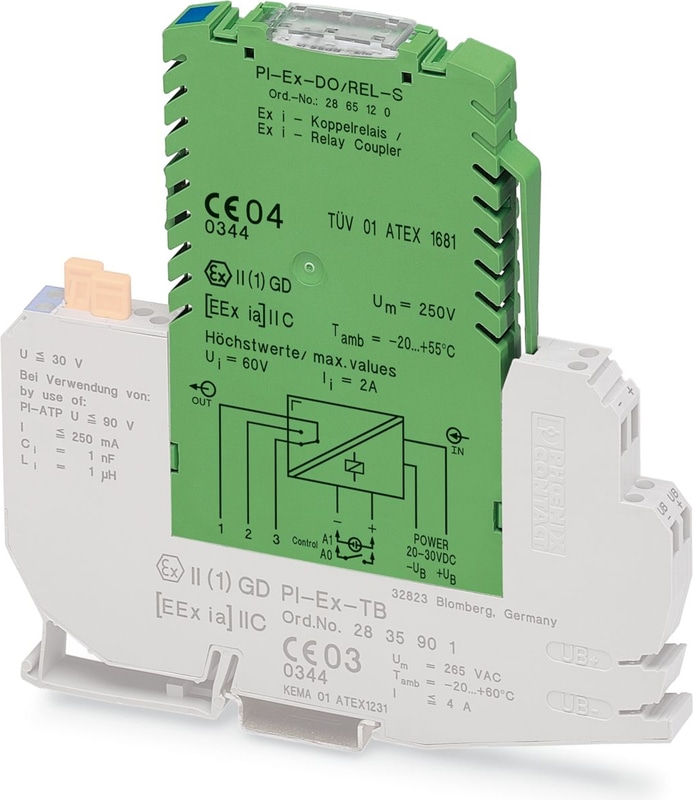

PI-EX-DO/REL-S - Signal isolator
Ex i binary output: Relay with intrinsically safe contact side. For switching intrinsically safe circuits. Control either with external switching voltages or floating switch contacts. With additional hand-operated level. Electrical isolation.
Technical Specifications
Product properties
| Application | Digital OUT |
| No. of channels | 1 |
Electrical isolation Input/output
| Electrical isolation | 375 V (Peak value as per EN 50020 / EN 60079-11) |
| Test voltage | 1.5 kV AC (50 Hz, 60 s) |
Electrical isolation Output/supply
| Electrical isolation | 375 V (Peak value as per EN 50020 / EN 60079-11) |
Supply
| Supply Voltage Range | 20 V DC ... 30 V DC |
Control
| Available Input Sources | External voltage actuated operation; 4 V DC < Us < 30 V DC: Relay picks up; Us < 2 V DC: Relay drops out |
| Available Input Sources | Operation via external switching contact, switch closed: Relay picks up; switch open: Relay drops out |
Switching: Relay
| Output description | intrinsically safe |
| Contact switching type | 1 changeover contact |
| Contact Material | AgNi, + 5 µm Au |
| Contact resistance per contact pair | ≤ 0.1 Ω |
| Maximum Switching Voltage | 30 V DC |
| Limiting Continuous Current | 300 mA (when intrinsically safe circuits are connected) |
Connection data
| Connection Method | Plug-in connection |
Safety data
| Safety-related maximum voltage Um | 250 V AC |
Signaling
| Status display | Green LED (supply voltage) |
| Status display | Yellow LED (status display) |
Dimensions
| Width | 12.4 mm |
| Height | 79 mm |
| Depth | 118.4 mm |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PBT and polyamide PA non-reinforced |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
CE
| Certificate | CE-compliant |
ATEX
| Identification | II (1) G [Ex ia Ga] IIC |
| Identification | II (1) D [Ex ia Da] IIIC |
| Identification | II 3 G Ex nA nC IIC T4 Gc |
| Certificate | PxCIF07ATEX2865120X |
EAC Ex
| Identification | [Ex ia Ga] IIC |
| Certificate | RU C-DE.AB72.B.00097/19 |
