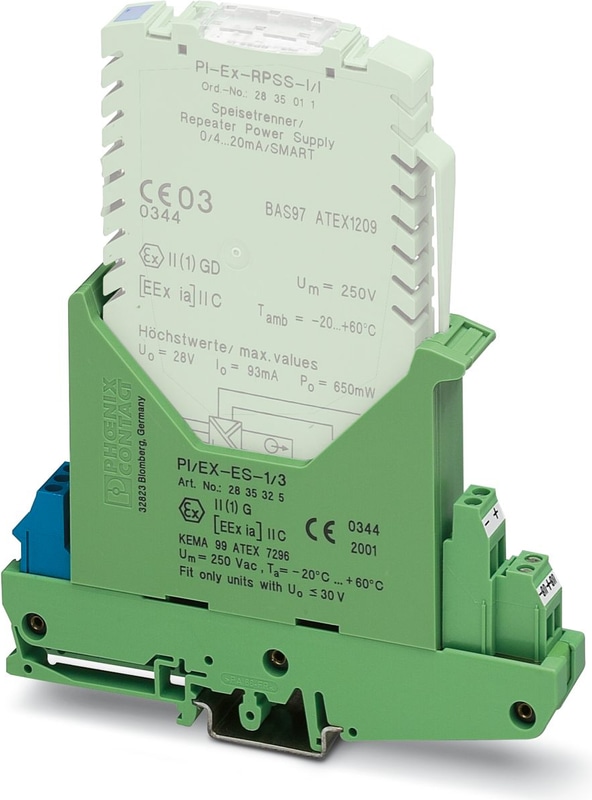

PI-EX-ES-1/3 - Basic terminal block
Ex basic terminal block, with three terminal points to the field level (Ex area)
Technical Specifications
Product properties
| Application | Base element |
Electrical properties
| Max. permissible current | ≤ 250 mA (Per circuit) |
| Nominal voltage UN | 250 V AC (UB+, UB-) |
| Nominal voltage UN | 20 V DC ... 35 V DC (See nominal voltage, PI modules) |
Field level
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Controller level
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Safety data
| Input voltage Ui | ≤ 30 V |
| Max. output voltage Uo | ≤ 30 V |
| Safety-related maximum voltage Um | 250 V AC |
Dimensions
| Width | 17.5 mm |
| Height | 127.5 mm |
| Depth | 92 mm |
| Depth NS 35/7,5 | 142.5 mm (with NS 35/7.5 coupling connector) |
| Depth NS 32 | 147.5 mm (with NS 32 coupling connector) |
| Depth NS 35/15 | 150 mm (with NS 35/15 coupling connector) |
Material specifications
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing insulation material | Polyamide PA non-reinforced, polycarbonate PC, PVC |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
CE
| Certificate | CE-compliant |
ATEX
| Identification | II (1) G [Ex ia Ga] IIC |
| Identification | II (1) D [Ex ia Da] IIIC |
| Identification | II 3 (1) G Ex nA [ia Ga] IIC T4 Gc |
| Certificate | KEMA 99ATEX7296 |
| Certificate | PxCIF08ATEX2835325X |
EAC Ex
| Identification | [Ex ia Ga] IIC |
| Certificate | RU C-DE.AB72.B.00097/19 |
Mounting
| Mounting Type | DIN rail mounting |
