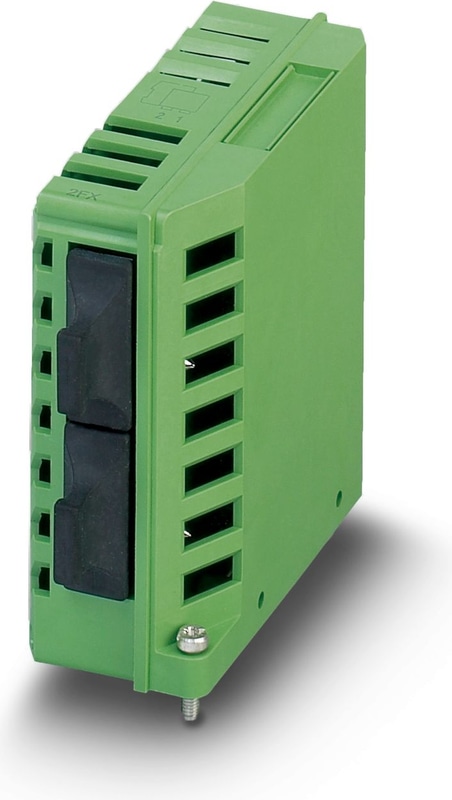

The figure shows a version with front connection
Official DistributorSKU
MPN
FL IF 2FX SM SC-D
Weight
0.107 kg
Series FL-IF
FL IF 2FX SM SC-D - Media module
FO interface module for connecting 100 Base-FX single mode glass fibers (1300 nm), SC, connection direction downward
- Robust Ethernet transmission even for medium-range environments prone to interference
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Type | fine granularity |
Functionality
| Basic Functions | Media module for modular managed switch |
Electrical properties
| Electrical isolation | 100Base-FX // supply |
| Local diagnostics | LEDs at head station / extension module |
| Maximum power dissipation for nominal condition | 21.6 W |
| Test voltage | 2 kV AC |
| Transmission medium | Copper |
| Transmission medium | FO |
Supply
| Supply Voltage | via head station |
| Power supply connection | From FL SWITCH GHS or FXT |
| Typical current consumption | 200 mA |
Ethernet: 100Base-FX in acc. with IEEE 802.3
| Connection Method | SC |
| Transmission Speed | 100 Mbps |
| Transmission length | 36000 m (maximum (depends on the fiber used)) |
| No. of channels | 2 |
| Connection Method | SC |
| Transmission Speed | 100 Mbps |
| Transmission length | 36000 m (fiberglass with F-G 9/125 0.36 dB/km) |
| Transmission length | 32000 m (fiberglass with F-G 9/125 0.4 dB/km) |
| Transmission length | 26000 m (fiberglass with F-G 9/125 0.5 dB/km) |
| Wavelength | 1300 nm |
| No. of channels | 2 (SC single mode) |
Dimensions
| Width | 31 mm |
| Height | 85 mm |
| Depth | 72.5 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing Material | PA |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Vibration (Operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
EMC data
| Conformance with EMC directives | IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B |
| Conformance with EMC directives | IEC 61000-4-3 (immunity to radiated interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-4 (burst) Criterion A |
| Conformance with EMC directives | IEC 61000-4-5 (surge) Criterion A |
| Conformance with EMC directives | IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Conformance with EMC directives | IEC 61000-4-8 (immunity to magnetic fields) Criterion A |
| Conformance with EMC directives | EN 55022 (emitted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
| Noise emission | EN 61000-6-3/-4 |
Standards and Regulations
| Free from substances that could impair the application of coating | In acc. with VW specification |
| Electrical isolation | 100Base-FX // supply |
Mounting
| Mounting Type | In the host system |
Accessories
