2766685
Official DistributorSKU
PHX2766685
MPN
MCR-PS- 24DC-10DC
Weight
0.115 kg
Series MCR-PS

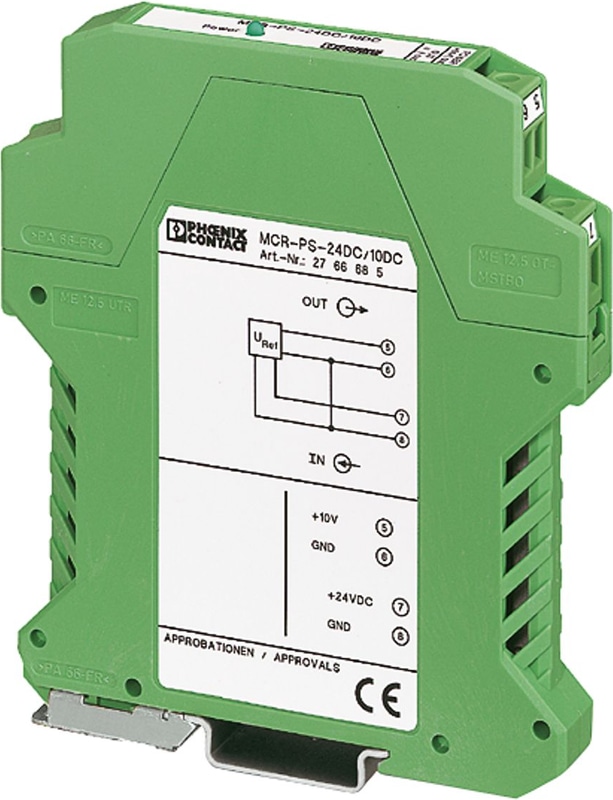

MCR-PS- 24DC-10DC - Signal conditioner
MCR constant voltage source, input voltage 18 - 30 V DC, output voltage 10 V DC
- Voltage reference for setpoint definition in conjunction with potentiometers
Technical Specifications
Electrical properties
| Maximum temperature coefficient | ≤ 0.015 %/K |
Input data
| Nominal input voltage range | 18 V DC ... 30 V DC |
| Current consumption | approx. 10 mA (with no load on the output) |
Output data
| Nominal Output Voltage | + 10 V DC ±0,1 % |
| Residual ripple | ≤ 50 mVPP |
| Short-circuit current | approx. 65 mA |
Input
| Connection Method | Pluggable screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
| Screw thread | M3 |
Output
| Connection Method | Pluggable screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
Dimensions
| Width | 12.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Horizontal pitch | 0.7 Div. |
Material specifications
| Housing Material | Polyamide PA non-reinforced |
| Type of housing | Polyamide PA non-reinforced, color: green |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 65 °C |
Conformity/Approvals
| Conformance | CE-compliant |
Mounting
| Mounting Position | any |
Why Proax for Phoenix Contact 2766685?
Proax is an authorized distributor of Phoenix Contact 2766685 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
