Phoenix Contact 2766821

2766821

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX2766821
MPN
MCR-PS- 24DC/24DC/200
Weight
0.123 kg
This product has been discontinued and replaced with 2866284
Series MCR-PS

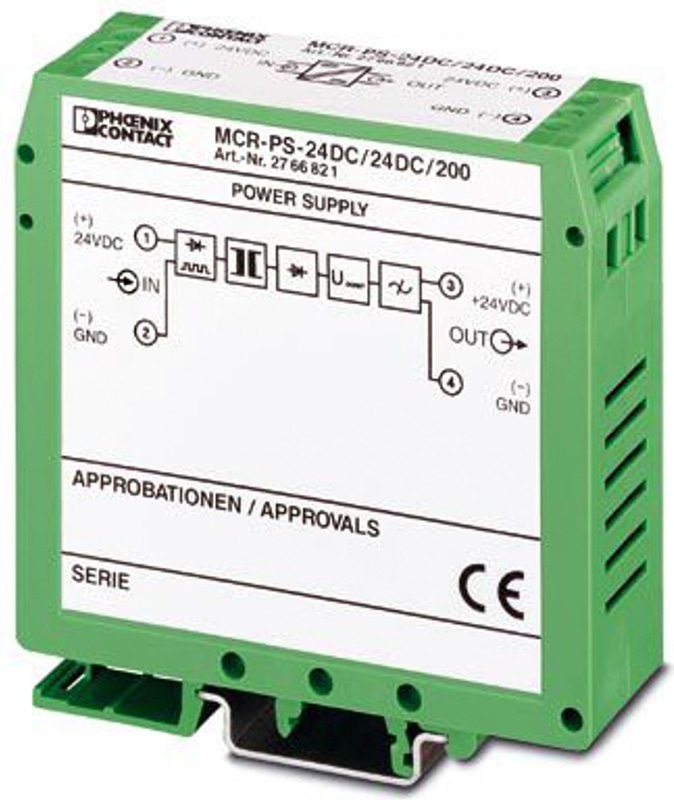

MCR-PS- 24DC/24DC/200 - Converter

DC/DC converter, with electrical isolation, input 20 V ... 30 V DC, output 24 V DC/200 mA

Technical Specifications

Input data

Input voltage range20 V DC ... 30 V DC
Input voltage range DC20 V DC ... 30 VPP
Voltage type of supply voltageDC
Current consumptionapprox. 380 mA
Nominal Power Consumptionapprox. 7.6 W
Protective circuitReverse polarity protection
Input fuse0.5 A (normal blow, internal 5x20)

Output data

Nominal Output Voltage24 V DC 5 %
Nominal output current (IN)200 mA
Residual ripple≤ 250 mVPP
Protective circuitCurrent limitation at approx. 250 mA

Input

Connection MethodScrew connection
Conductor cross section, rigid min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Stripping length8 mm
Screw threadM3

Output

Connection MethodScrew connection
Conductor cross section, rigid min.0.2 mm²
Conductor cross section, rigid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Stripping length8 mm
Screw threadM3

Electrical properties

Test voltage input/output500 V AC

Product properties

Operating mode100% operating factor

Insulation characteristics

Overvoltage categoryII
Degree of pollution2

Dimensions

Width25 mm
Height85.5 mm
Depth79 mm
Horizontal pitch1.4 Div.

Mounting

Assembly instructionsCan be aligned with spacing = 10 mm
Mounting Positionvertical
With protective coatingNo

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)0 °C ... 55 °C

Standards

Standards/regulationsIEC 664
Standards/regulationsIEC 664 A
Standards/regulationsDIN VDE 0110-1
