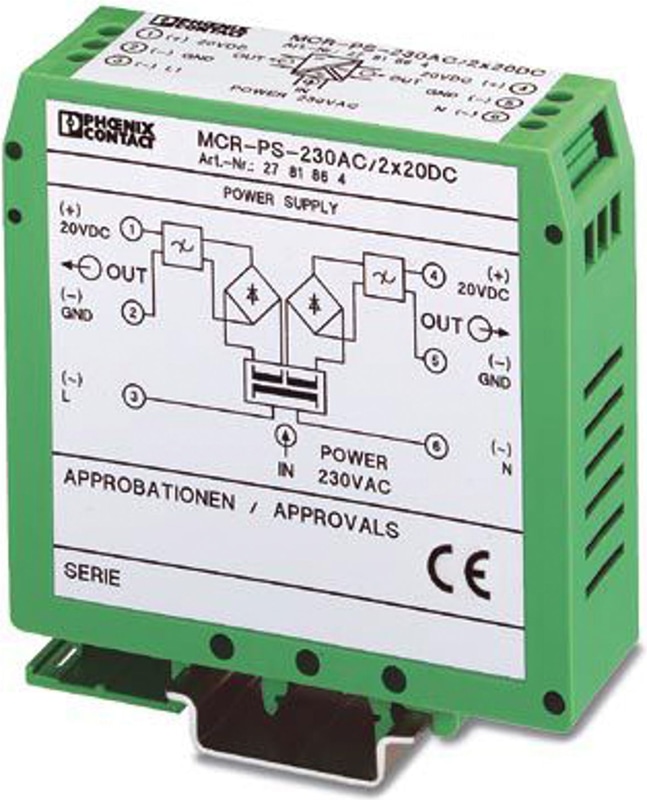

MCR-PS-230AC/2X20DC - Converter
Power supply unit, with fixed-voltage regulator, input 230 V AC, output 2 x 20 V DC/2 x 25 mA
Technical Specifications
Input data
| Input Voltage | 230 V AC +10 % -5 % |
| Voltage type of supply voltage | AC |
| AC frequency range | 50 Hz ... 60 Hz |
| Current consumption | approx. 11 mA |
Output data
| Number of Outputs | 2 |
| Nominal Output Voltage | 20 V DC (per output) |
| Nominal output current (IN) | 25 mA (per output) |
| Residual ripple | < 50 mVPP (at UN = 24 V AC) |
Input
| Connection Method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
| Screw thread | M3 |
Output
| Connection Method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
| Screw thread | M3 |
Electrical properties
| Number of phases | 1.00 |
| Test voltage output/output | 4 kV AC |
| Test voltage input/output | 2.5 kV AC |
Product properties
| Operating mode | 100% operating factor |
Dimensions
| Width | 25 mm |
| Height | 85.5 mm |
| Depth | 79 mm |
| Horizontal pitch | 1.4 Div. |
Mounting
| Assembly instructions | any |
| Mounting Position | any |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 60 °C |
Standards
| Standards/regulations | IEC 664 |
| Standards/regulations | IEC 664 A |
| Standards/regulations | DIN VDE 0110-1 |
| Standards/regulations | DIN VDE 0551 |
