MCR-PS- 24DC/2X24DC
Weight
0.098 kg
Series MCR-PS

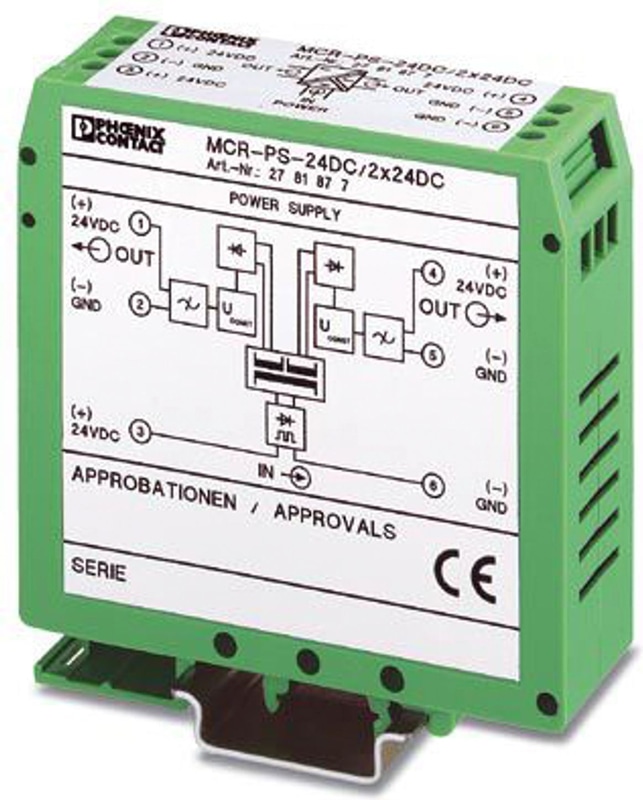

MCR-PS- 24DC/2X24DC - Auxiliary contactor
DC/DC converter, with galvanic isolation of outputs, input 24 V DC, output 2 x 24 V DC/2 x 30 mA
Technical Specifications
Input data
| Input Voltage | 24 V DC ±10 % |
| Nominal input voltage range | 24 V DC |
| Input voltage range | 21.6 V DC ... 26.4 V DC |
| Wide-range input | yes |
| Voltage type of supply voltage | DC |
| Current consumption | approx. 100 mA |
Output data
| Nominal Output Voltage | 24 V DC (2x) |
| Nominal output current (IN) | 30 mA (2x) |
| Residual ripple | ≤ 50 mVPP |
| Output Power | 1.5 W |
Input
| Connection Method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
| Screw thread | M3 |
Output
| Connection Method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 8 mm |
Electrical properties
| Number of phases | 1.00 |
| Test voltage output/output | 1.5 kV AC |
| Test voltage input/output | 2.5 kV AC |
Product properties
| Operating mode | 100% operating factor |
Dimensions
| Width | 25 mm |
| Height | 85.5 mm |
| Depth | 79 mm |
Mounting
| Assembly instructions | any |
| Mounting Position | any |
| With protective coating | No |
Material specifications
| Housing Material | Plastic |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C |
Standards
| Standards/regulations | IEC 664 |
| Standards/regulations | IEC 664 A |
| Standards/regulations | DIN VDE 0110-1 |
