Official DistributorSKU
MPN
PSI-WL-PLUG-RS232/BT
Weight
0.117 kg

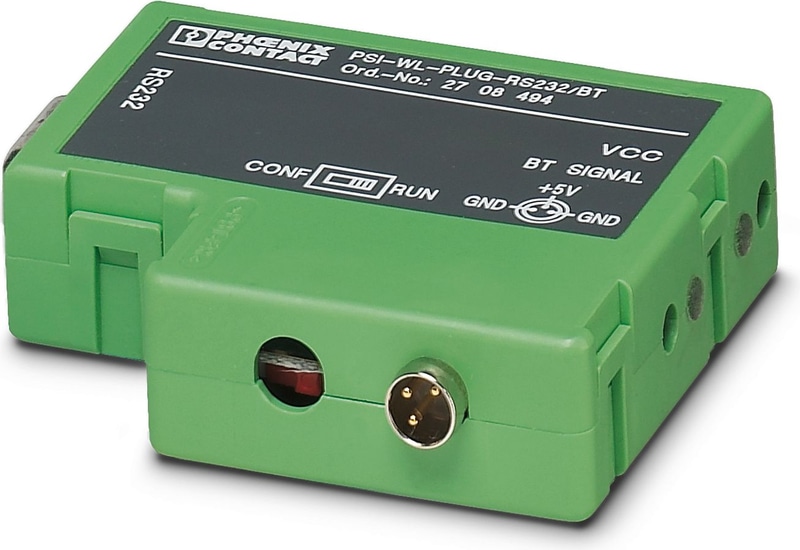

PSI-WL-PLUG-RS232/BT - Bluetooth converter
RS-232 Bluetooth adapter for direct assembly on 9-pos. serial ports. Internal antenna Supply 5 V DC via separate plug-in power supply unit or adapter set.
Technical Specifications
Product properties
| Application | RS-232/Bluetooth |
Electrical properties
| Electrical isolation | VCC // GND |
| Test voltage data interfaces | 500 V |
Supply
| Supply Voltage Range | 4 V DC ... 6 V DC (via 3-pos. device connector, using adapter set) |
| Nominal Supply Voltage | 5 V DC ±20 % (via 3-pos. device connector, using adapter set) |
| Typical current consumption | 70 mA (5 V DC) |
Data: V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
| Serial transmission speed | 300, 1200, 2400, 4800, 7200, 9600, 19200, 31250, 38400, 57600, 75000, 93750, 115200 bps |
| Connection Method | D-SUB-9 female connector |
| Transmission length | max. 15 m |
| File format/coding | Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length |
| Data flow control/protocols | Software handshake, Xon/Xoff, or hardware handshake RTS/CTS, 3964 compatible |
Wireless
| Interface description | Specification 1.1, class 2 |
| Frequency Range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Transmission method | 1.6 kHz (FHSS) |
| Transmit capacity, minimum | 0 dBm |
| Minimum receiver sensitivity | -75 dBm |
| Antenna | Internal |
| Range | 0 dBm (1 mW) = 10 m to 30 m |
| Bluetooth Multidrop master/slave | 1/3 |
Dimensions
| Width | 52 mm |
| Height | 60.5 mm |
| Depth | 16 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Material (Housing) | PBT-FR |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
EMC data
| Noise immunity | Not relevant, cable length < 3 m |
| Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
| Noise emission | EN 55011 |
Why Proax for Phoenix Contact 2708494?
Proax is an authorized distributor of Phoenix Contact 2708494 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
