Official DistributorSKU
MPN
PSI-WL-RS232-RS485/BT/2DO
Weight
0.195 kg
Series PSI-WL-RS232

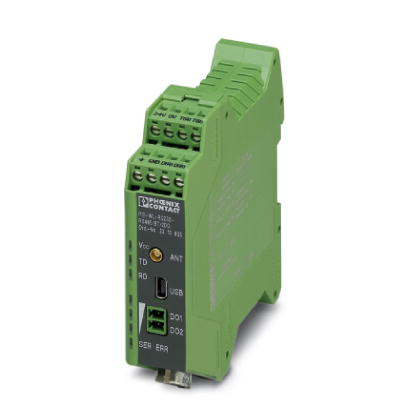

PSI-WL-RS232-RS485/BT/2DO - Bluetooth converter
Bluetooth converter, wireless transmission: RS-232/RS-422/RS-485 2-wire, mounting on EN DIN rails, MCX connection for external antenna, integrated path diagnostics: bar graph + two digital outputs
- Installation of parallel wireless paths by cross-wiring 24 V DC and RS-485
- Transceiver for distances of up to 150 m
- Can be used for RS-232/RS-422/RS-485 2-wire interfaces up to 187.5 kbps
- Coexistence with other wireless systems due to the adaptive frequency hopping (AFH) method
- Local configuration via USB interface without separate power supply unit
- Multipoint with up to seven slaves
- Secure and tamper-proof data transmission thanks to password protection, encryption, plus fixed and invisible device pairing
- Wireless path diagnostics using integrated bar graphs and 2 digital outputs
- Suitable for worldwide use thanks to adjustable transmission power (-28 ... 14 dBm)
Technical Specifications
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 116 mm |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of Protection | IP20 |
| Interface | V.24 (RS-232) |
| Connection Method | D-SUB-9 male connector |
| Interface | RS-422 |
| Connection Method | Pluggable screw connection |
| Interface | RS-485 2-wire |
| Frequency Range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Interface | USB |
| Connection Method | Mini-USB B, socket |
| Connection Method | MCX socket |
| Nominal Supply Voltage | 24 V DC ±20 % (as an alternative or redundant, via backplane bus contact and system current supply) |
| Housing Material | PA 6.6-FR |
| Colour | green |
Why Proax for Phoenix Contact 2313805?
Proax is an authorized distributor of Phoenix Contact 2313805 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
