Official DistributorSKU
MPN
PSI-WL-PLUG-USB/BT
Weight
0.146 kg

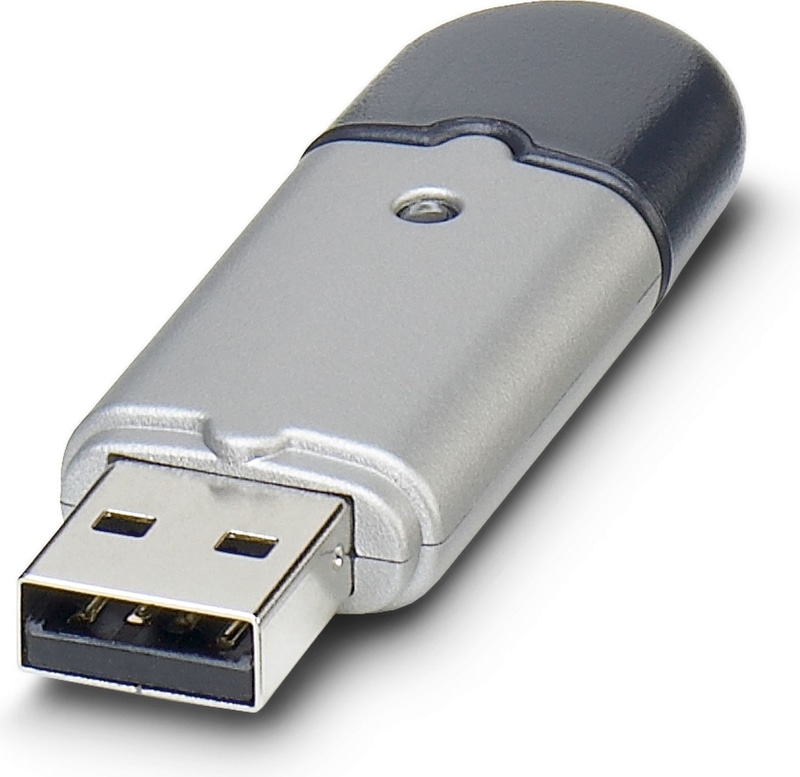

PSI-WL-PLUG-USB/BT - USB Bluetooth adapter
Bluetooth-USB adapter for direct assembly on USB type A ports and wireless transmission from USB interfaces
Technical Specifications
Product properties
| Application | USB/Bluetooth |
Supply
| Nominal Supply Voltage | 5 V DC (Directly via the USB interface) |
| Typical current consumption | 100 mA (5 V DC) |
| Tightening torque | 0.56 Nm ... 0.79 Nm |
Data: USB 2.0
| Serial transmission speed | Up to 2.1 Mbps |
| Connection Method | USB type A, male connector |
| Transmission length | max. 5 m |
| File format/coding | Synchronous / asynchronous |
| Data flow control/protocols | Transparent to protocol incl. 3964 R protocol |
Wireless
| Interface description | Bluetooth 2.0 |
| Frequency Range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Transmission method | 1.6 kHz (FHSS) |
| Transmit capacity, minimum | 20 dBm |
| Minimum receiver sensitivity | -80 dBm |
| Antenna | Internal |
| Range | 20 dBm (100 mW) = 80 m ... 150 m |
Dimensions
| Width | 18 mm |
| Height | 58 mm |
| Depth | 8 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 70 °C |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
EMC data
| Noise immunity | Not relevant, cable length < 3 m |
| Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
| Noise emission | EN 55022 / Class B |
