PSI-WL-PROFIB/BT-SET - Bluetooth converter

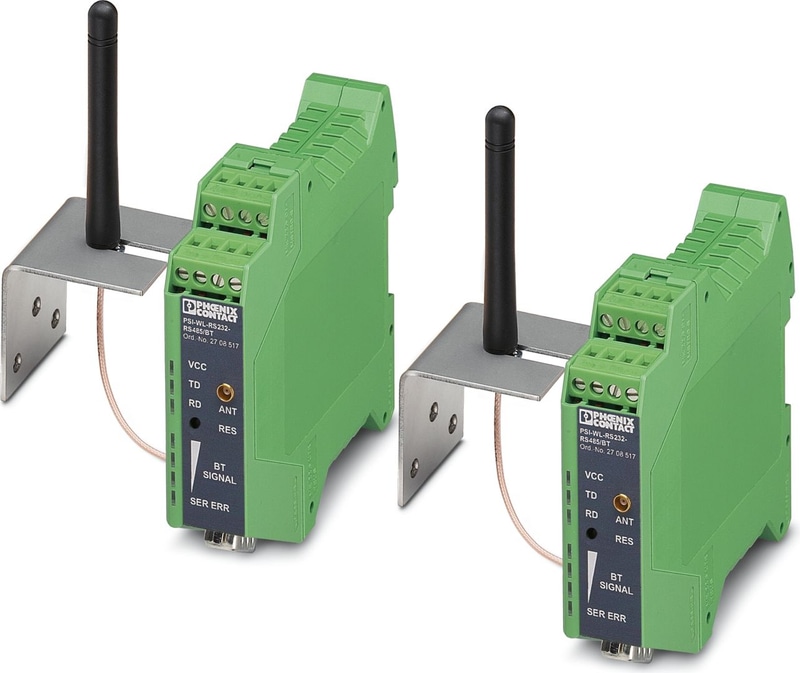

Bluetooth PROFIBUS set, preconfigured: PROFIBUS point-to-point, PROFIBUS baud rate: 187.5 Kbps, contents: 2x Bluetooth converter + 2x antenna
Technical Specifications
Electrical properties
| Electrical isolation | VCC // Bluetooth, RS-232, RS-422, RS-485, USB |
| Test voltage data interfaces | 1.5 kV AC |
Supply
| Supply Voltage Range | 10 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
| Supply Voltage Range | 19 V AC ... 29 V AC (via pluggable COMBICON screw terminal block) |
| Nominal Supply Voltage | 24 V AC ±20 % (via pluggable COMBICON screw terminal block) |
| Nominal Supply Voltage | 24 V DC ±20 % (as an alternative or redundant, via backplane bus contact and system current supply) |
| Typical current consumption | ≤ 100 mA (24 V DC) |
Interfaces
| Signal | PROFIBUS |
Data: RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire
| Serial transmission speed | 187500 bps |
| Connection Method | COMBICON screw terminal block |
| Transmission length | max. 1200 m |
| Termination resistor | 390 Ω - 150 Ω - 390 Ω (can be connected) |
| File format/coding | 8 data, 1 stop, 1 parity, 11 bit character length |
Wireless
| Interface description | Bluetooth 2.0 |
| Frequency Range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Transmission method | 1.6 kHz (FHSS) |
| Transmit capacity, minimum | 20 dBm |
| Minimum receiver sensitivity | -83 dBm |
| Antenna | External |
| Connection Method | MCX |
| Range | 20 dBm (100 mW) = 80 m ... 150 m |
Dimensions
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 116 mm |
Material specifications
| Color | green |
| Material (Housing) | PA 6.6-FR |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
EMC data
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with R&TTE directive 1999/5/EC |
| Noise emission | EN 55011 |
Mounting
| Mounting Type | DIN rail mounting |
