FL COMSERVER BASIC 232/422/485
Weight
0.177 kg
This product is Not Cancellable/Not Returnable

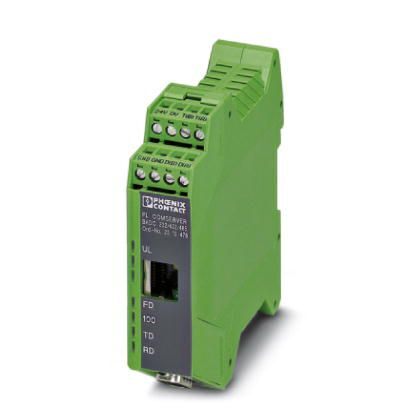

Interface converters - FL COMSERVER BASIC 232/422/485
Second generation FL COMSERVER BASIC..., serial device server for converting a serial RS-232/422/485 interface to Ethernet, only supports TCP and UDP applications, incl. Com Port Redirector software and user documentation (PDF)
- Reasonably-priced version
- Software for virtual COM ports supplied as standard
- TCP and UDP support
- Configuration via web-based management
- All connections can be plugged in using a COMBICON screw terminal block
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
| Utilization restriction | Use in potentially explosive areas is not permitted in China. |
Dimensions
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 116 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient Temperature (Operation) | -20 °C ... 60 °C (in acc. with UL) |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Degree of Protection | IP20 |
| Noise immunity | EN 61000-6-2:2005 |
General
| Electrical isolation | VCC // Ethernet // Serial |
| Test voltage data interface/data interface | 1.5 kVrms (50 Hz, 1 min.) |
| Test voltage data interface/power supply | 1.5 kVrms |
| Test voltage data interface/power supply | 1.5 kVrms (50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
| Mounting Type | DIN rail mounting |
| Net weight | 176.5 g |
| Housing Material | PA 6.6-FR |
| Color | green |
| MTBF | 666 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| MTBF | 179 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
| MTTF | 2001 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| MTTF | 870 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) |
| MTTF | 355 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
Power supply
| Nominal Supply Voltage | 24 V AC/DC ±20 % (via pluggable COMBICON screw terminal block) |
| Nominal Supply Voltage | 24 V DC ±5 % (as an alternative or redundant, via backplane bus contact and system current supply) |
| Supply Voltage Range | 19.2 V AC/DC ... 28.8 V AC/DC (via pluggable COMBICON screw terminal block) |
| Supply Voltage Range | 22.8 V DC ... 25.2 V DC (as an alternative or redundant, via backplane bus contact and system current supply) |
| Typical current consumption | 100 mA (24 V DC) |
Interfaces
| Interface 1 | Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3 |
| Interface | Ethernet |
| No. of ports | 1 |
| Connection Method | RJ45 jack, shielded |
| Transmission length | ≤ 100 m (shielded twisted pair) |
| Protocols Supported | TCP/IP, UDP |
| Auxiliary protocols | ARP, DHCP, BOOTP, SNMP, RIP, RARP, HTTP, TFTP, ICMP |
| Serial transmission speed | 10/100 Mbps, auto negotiation |
| Interface 2 | V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1 |
| Interface | RS-232 |
| Connection Method | D-SUB 9 plug |
| File format/coding | UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity |
| Transmission length | 15 m |
| Pin assignment | DTE/DCE switchover via web-based management |
| Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
| Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4 kbps |
| Interface 3 | RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1 |
| Interface | RS-422 |
| Connection Method | Plug-in/screw connection via COMBICON |
| File format/coding | UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity |
| Transmission length | ≤ 1200 m |
| Termination resistor | 390 Ω (configurable) |
| Termination resistor | 180 Ω |
| Termination resistor | 390 Ω |
| Data flow control/protocols | Automatic control |
| Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps |
| Interface 4 | RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire |
| Interface | RS-485 |
| Connection Method | Plug-in/screw connection via COMBICON |
| File format/coding | UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity |
| Termination resistor | 390 Ω (configurable) |
| Termination resistor | 180 Ω |
| Termination resistor | 390 Ω |
| Data flow control/protocols | Automatic control |
| Serial transmission speed | 0.3; 0.6; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 38.4; 57.6; 115.2; 187.5; 230.4; 500; 1000 kbps |
Function
| Web-based management | yes |
| Management | Web-based management, SNMP, emergency exit with Telnet and serial |
| Status and diagnostic indicators | LEDs: UL (logic voltage), TD + RD (data activity serial), FD (full duplex), 100 (100 Mbps mode), Link (Ethernet), Activity (Ethernet), ERR (error) |
| Management | Web-based management |
| Management | SNMP v1/v2 |
Conformance/approvals
| Designation | CE |
| Certificate | CE-compliant |
| Designation | EAC |
| Identification | EAC |
| Designation | ATEX |
| Identification | ??? II 3G Ex nA IIC T4 Gc X |
| Additional text | Please follow the special installation instructions in the documentation! |
| Designation | UL, USA / Canada |
| Identification | 508 Listed |
| Identification | Class I, Div. 2, Groups A, B, C, D |
| Designation | UL, USA |
| Identification | Class I, Zone 2, AEx nA IIC T5 |
| Designation | UL, Canada |
| Identification | Class I, Zone 2, Ex nA IIC T5 Gc X |
| Designation | KC approval for South Korea |
| Certificate | KCC-REI-PCK-FL2313478 |
| Designation | Corrosive gas test |
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Type of test | Free fall in acc. with IEC 60068-2-32 |
| Test result | 1 m |
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Test result | 5g, 10...150 Hz, 2.5 h, in XYZ direction |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | 15g, 11 ms period, half-sine shock pulse |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | 30g, 11 ms period, half-sine shock pulse |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Free from substances that could impair the application of coating | according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
| Standards/regulations | EN 50121-4 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
2866983 - Please use the following item in new systems: 2904614Primary-switched MINI POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/1.5 A
2707437 - DIN rail connector, color: green, nominal current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of positions: 5, product range: TBUS5-22,5.., pitch: 3.81 mm, mounting: DIN rail mounting, locking: without, mounting: without, type of packaging: packed in cardboard, Item with gold-plated contacts, bus connectors for connecting with electronics housings, 5 parallel contacts
2313452 - Second generation FL COMSERVER UNI..., serial device server for converting a serial 232/422/485 interface to Ethernet, supports TCP, UDP, Modbus gateway, and PPP applications, incl. COM port redirector software and user documentation
2744814 - CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm2, solid conductor, shielded, outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter
2744830 - By the meter, Installation cable, Ethernet CAT5 (100 Mbps), shielded, PUR halogen-free, water blue RAL 5021, 4-wire (2x2xAWG26/7, SF/UTP), color single wire: white/orange-orange, white/green-green, cable length: Free entry (1.0 ... 1000.0 m)
1656725 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 23, cable outlet: straight, color: traffic grey A RAL 7042, Ethernet
2891003 - Wide-temperature Ethernet switch, 5 TP RJ45 ports, automatic detection of data transmission speed of 10/100 Mbps (RJ45), autocrossing function, reads QoS priority messages, accepts security frames
2902853 - FO converter with SC duplex fiber optic connection (1300 nm), for converting 10/100Base-T(X) to multi-mode fiberglass (50/125 µm). Auto negotiation and auto MDI(X) function. Comprehensive link diagnostics. DIN-rail mountable, 18 ... 30 V DC supply.
2313931 - Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV. Can be used for transmission speeds of up to 100 Mbps. Possible to connect two RJ45 plugs.
2901642 - Patch panel, one RJ45 jack to 8 spring-force connection terminal blocks (1:1 assignment), CAT5e, 10/100/1000 Mbps, DIN rail adapter, IP20, option of shield contacting to the DIN rail via jumpers
2313643 - First generation: Unmanaged Ethernet extender for point-to-point connections, line and ring structures, data rates up to 30 Mbps, distances of up to 20 km on in-house copper cables, diagnostics via USB and LEDs, 2 SHDSL ports, 1 LAN port
2313669 - Industrial SHDSL extender for serial RS-232/422/485 interfaces, point-to-point and line structures, serial data transmission up to 2000 kbps on in-house cables, diagnostics via USB and LEDs, two configurable alarm outputs
1204517 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip
2761499 - D-SUB plug, 9-pos. female connector, one 35° cable entry, universal type for all systems, pin assignment: 1, 2, 3, 4, 5, 6, 7, 8, 9 to screw connection terminal block
2881007 - Surge protection in accordance with Class EA (CAT6A), for Gigabit Ethernet (up to 10 Gbps), token ring, FDDI/CDDI, ISDN, and DS1. Suitable for Power over Ethernet (PoE++ / 4PPoE) “Mode A” and “Mode B”. RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.
