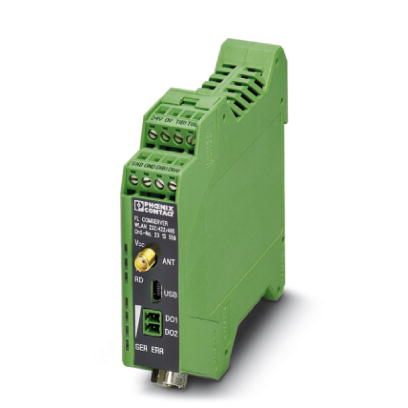

Interface converters FL COMSERVER WLAN 232/422/485
FL COMSERVER WLAN..., to convert a serial RS-232/422/485 or USB interface to 54 Mbps WLAN Ethernet, supports TCP, UDP applications, incl. CD-ROM with Com Port Redirector Software and user documentation (PDF).
- Redundant power supply and modular station structure with TBUS connectors
- User-friendly configuration software
- Ad-hoc or infrastructure mode
- LED diagnostic indicators
- Software for virtual COM ports supplied as standard
- 3-way electrical isolation VCC // RS-232/RS-422/RS-485 // network
- Extended temperature range of -25°C to +60°C
Technical Specifications
Dimensions
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 121 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Altitude | 5000 m (For restrictions see manufacturer's declaration) |
| Degree of Protection | IP20 |
| Noise immunity | EN 61000-6-2:2005 |
General
| Electrical isolation | VCC // WLAN, RS-232, RS-422, RS-485, USB |
| Test voltage data interface/data interface | 1.5 kVrms (50 Hz, 1 min.) |
| Test voltage data interface/power supply | 1.5 kVrms |
| Test voltage data interface/power supply | 1.5 kVrms (50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
| Net weight | 232.8 g |
| Housing Material | PA 6.6-FR |
| Color | green |
| MTBF | 1153 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| MTBF | 262 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
| MTTF | 2120 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| MTTF | 851 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) |
| MTTF | 346 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
| Conformance | CE-compliant |
| UL, USA/Canada | 508 Listed |
| FCC | Part 15, RSS 210 |
Power supply
| Nominal Supply Voltage | 24 V DC ±20 % (as an alternative or redundant, via backplane bus contact and system current supply) |
| Supply Voltage Range | 10 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
| Supply Voltage Range | 19 V AC ... 29 V AC (via pluggable COMBICON screw terminal block) |
| Typical current consumption | ≤ 100 mA (24 V DC) |
Serial interface
| Interface 1 | V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1 |
| Interface | RS-232 |
| Connection Method | D-SUB 9 plug |
| File format/coding | Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length |
| Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
| Serial transmission speed | 0.3; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2 kbps |
| Interface 2 | RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1 |
| Interface | RS-422 |
| Connection Method | Plug-in/screw connection via COMBICON |
| File format/coding | Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length |
| Transmission length | ≤ 1200 m |
| Termination resistor | 390 Ω |
| Termination resistor | 180 Ω |
| Termination resistor | 390 Ω (Can be connected) |
| Data flow control/protocols | Automatic control |
| Serial transmission speed | 0.3; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2; 136; 187.5 kbps |
| Interface 3 | RS-485 interface, in acc. with EIA/TIA-485, DIN 66259-4/RS-485 2-wire |
| Interface | RS-485 |
| Connection Method | Plug-in/screw connection via COMBICON |
| File format/coding | Serial asynchronous UART/NRZ, 7/8 data, 1/2 stop, 1 parity, 10/11-bit character length |
| Termination resistor | 390 Ω |
| Termination resistor | 180 Ω |
| Termination resistor | 390 Ω (Can be connected) |
| Data flow control/protocols | Automatic control |
| Serial transmission speed | 0.3; 1.2; 2.4; 4.8; 7.2; 9.6; 19.2; 31.25; 38.4; 57.6; 75; 93.75; 115.2; 136; 187.5 kbps |
| Interface 4 | USB interface |
| Interface | USB |
| Connection Method | Mini-USB B, socket |
Wireless interface
| Interface description | WLAN as per IEEE 802.11 b/g |
| Frequency Range | 2.402 GHz ... 2.48 GHz (ISM bandwidth) |
| Transmit capacity, minimum | -28 dBm (can be set via software) |
| Transmit capacity, maximum | 20 dBm (can be set via software) |
| Data rate | ≤ 54 Mbps |
| Minimum receiver sensitivity | -85 dBm |
| Antenna | External |
| Connection Method | SMA socket |
| Operating mode | Infrastructure mode, ad-hoc mode |
| Security | 802.11i, WPA PSK (preshared key), WPA2 PSK, AES, WEP 64 Bit/128 Bit, TKIP |
| Configuration | USB, serially with configuration software |
| Protocols Supported | TCP/IP, UDP |
Function
| Management | With configuration software via USB and serial interface |
| Status and diagnostic indicators | LEDs: UL (logic voltage), TD + RD (data activity serial), 4-level bar graph (received wireless power), SER ERR (serial errors) |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Conformance | CE-compliant |
| UL, USA/Canada | 508 Listed |
| FCC | Part 15, RSS 210 |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
2799474 - RS-232 cable, 9-pos. D-SUB socket on 9-pos. D-SUB socket, 9-wire, 1:1
2866983 - Please use the following item in new systems: 2904614Primary-switched MINI POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/1.5 A
2707437 - DIN rail connector, color: green, nominal current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of positions: 5, product range: TBUS5-22,5.., pitch: 3.81 mm, mounting: DIN rail mounting, locking: without, mounting: without, type of packaging: packed in cardboard, Item with gold-plated contacts, bus connectors for connecting with electronics housings, 5 parallel contacts
1204517 - Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip
2313575 - USB 2.0 cable, USB A male plug to mini-USB B male plug, length: 1 m
2885867 - Omnidirectional antenna with protection against vandalism, 2.4 GHz, gain: 3 dBi, polarization: linear, opening angle: h/v 360°/85°, degree of protection: IP55, connection: SMA (male), for control cabinet mounting (optional wall mounting), incl. 1.5 m / 5 ft. connecting cable
2867610 - Directional antenna, 2.4 GHz, gain: 8 dBi, polarization: linear, opening angle: h/v 75°/70°, degree of protection: IP55, connection: SMA (female), incl. mounting bracket and mast clips
2867649 - Antenna cable, outside diameter: 10 mm (0.4 in.), inner conductor: stranded, attenuation: 1.0 / 1.8 / 3.1 dB at 0.9 / 2.4 / 5.8 GHz, connection: 2 x N (male), cable length: 3 m (10 ft.)- 2986135 - USB connecting cable: USB plug type A to USB plug type Mini-B; length: 3 m
2761499 - D-SUB plug, 9-pos. female connector, one 35° cable entry, universal type for all systems, pin assignment: 1, 2, 3, 4, 5, 6, 7, 8, 9 to screw connection terminal block
1803578 - PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Socket, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MC 1,5/..-ST, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, plug-in system: COMBICON MC 1,5, locking: without, mounting: without, type of packaging: packed in cardboard
2884923 - Omnidirectional antenna, 2.4 GHz, gain: 5 dBi, polarization: linear, opening angle: h/v 360°/45°, degree of protection: IP55, connection: SMA (male)
WLAN access point, 24 V DC; IEEE 802.11 a/b/g; 2.4 GHz; 5 GHz, client adapter, bridge; antenna diversity; Wi-Fi compliant; web-based management; 802.11i, DIN rail mounting, without antenna
2313478 - Second generation FL COMSERVER BASIC..., serial device server for converting a serial RS-232/422/485 interface to Ethernet, only supports TCP and UDP applications, incl. Com Port Redirector software and user documentation (PDF)
