2296281
Official DistributorSKU
PHX2296281
MPN
FLKM 50/4-FLK14/PA-S300
Weight
0.057 kg
Series FLKM

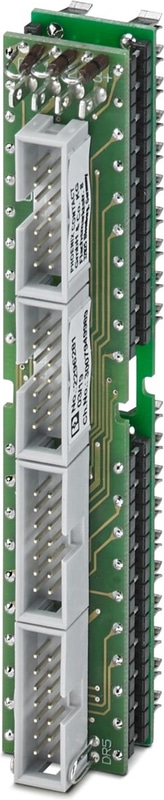

FLKM 50/4-FLK14/PA-S300 - Front adapter
Front adapter, 4 x 8 channels can be connected for SIMATIC S7-300, 14-pos.
Documents
Technical Specifications
Product properties
| Product family | VARIOFACE |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Nominal operating mode | 100% operating factor |
| Current (per branch) | ≤ 1 A |
| Current (Voltage supply via IDC/FLK) | ≤ 2 A |
| Current (Voltage supply via spade connection) | ≤ 8 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
Supported controller SIEMENS S7-300 / ET 200 M
| Suitable I/O card | CPU 313C |
| Suitable I/O card | CPU 313C-2DP |
| Suitable I/O card | CPU 313C-2PtP |
| Suitable I/O card | CPU 314C-2DP |
| Suitable I/O card | CPU 314C-2PtP |
| Suitable I/O card | 6ES7321-1BL00-0AA0 |
| Suitable I/O card | 6ES7322-8BH01-0AB0 |
| Suitable I/O card | 6ES7331-1KF02-0AB0 |
| Suitable I/O card | 6ES7322-1BL00-0AA0 |
| Suitable I/O card | 6ES7323-1BL00-0AA0 |
| Suitable I/O card | 6ES7331-1KF01-0AB0 |
| Suitable I/O card | 6ES7331-1KF02-0AB0 |
| Suitable I/O card | 6ES7331-7NF00-0AB0 |
| Suitable I/O card | 6ES7331-7NF10-0AB0 |
| Suitable I/O card | 6ES7331-7PF01-0AB0 |
| Suitable I/O card | 6ES7331-7PF11-0AB0 |
| Suitable I/O card | 6ES7332-5HF00-0AB0 |
| Suitable I/O card | 6ES7350-2AH01-0AE0 |
| Suitable I/O card | 6ES7357-4AH01-0AE0 |
Connection 1 (control level)
| Connection Method | Plug-in connection |
| Number of Positions | 40 |
Connection 2 (field level)
| Connection in acc. with standard | IEC 60603-13 |
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 4 |
| Number of Positions | 14 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Connection 3 (supply)
| Connection Method | Spade connection |
| Number of Positions | 4 |
| Note | 2,8 x 0,8 |
Item dimensions
| Width | 115.01 mm |
| Height | 21.3 mm |
| Depth | 29.29 mm |
Ambient conditions
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | Plug-in mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Notes on operation | To prevent short circuits, all wire bridges on the following I/O cards are to be separated.There may not be any voltage supply at the front adapter.6ES7 331-1KF01-0AB06ES7 331-1KF02-0AB06ES7 331-7NF00-0AB06ES7 331-7NF10-0AB06ES7 331-7PF01-0AB06ES7 331-7PF11-0AB06ES7 332-5HF00-0AB06ES7 350-2AH01-0AE06ES7 357-4AH01-0AE0 |
Accessories
VIP-2/SC/2FLK14 (1-20) /S7 - VARIOFACE interface module for Siemens SIMATIC® S7-300, for max. 16 channels with SIMATIC®-specific labeling (1 - 20), with screw connection, module width: 80.6 mm
VIP-2/PT/2FLK14 (1-20) /S7 - VARIOFACE interface module for Siemens SIMATIC® S7-300, for max. 16 channels with SIMATIC®-specific labeling (1 - 20), with push-in connection, module width: 82.5 mm
FLKM-2FLK14/KDS3-MT/PPA/S7 - VARIOFACE termination board for Siemens SIMATIC® S7-300, for max. 16 channels with SIMATIC®-specific marking (1-20), knife-disconnect terminal block, and test pick-off, module width: 113 mm
PLC-V8/FLK14/OUT - V8 adapter for 8 x PLC-INTERFACE (6.2 mm), controller: PLC system cabling of output cards, connection 1: IDC/FLK pin strip 1x 14-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend
PLC-V8/FLK14/IN - V8 adapter for 8 x PLC-INTERFACE (6.2 mm), controller: PLC system cabling of input cards, connection 1: IDC/FLK pin strip 1x 14-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend
PLC-V8L/FLK14/OUT - V8 adapter for 8 x PLC-INTERFACE (14 mm), controller: PLC system cabling of output cards, connection 1: IDC/FLK pin strip 1x 14-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend
VIP-3/PT/FLK14/8IM/PLC - VARIOFACE sensor module, with push-in connection, for connecting 8 pnp sensors
FLK 14/EZ-DR/ 450/KONFEK - Round cable set; connection 1: IDC/FLK socket strip (1x 14-position); connection 2: IDC/FLK socket strip (1x 14-position); cable length: 4.5 m- FLK 14/EZ-DR/ 550/KONFEK - Round cable set; connection 1: IDC/FLK socket strip (1x 14-position); connection 2: IDC/FLK socket strip (1x 14-position); cable length: 5.5 m
FLK 14/EZ-DR/ 60/KONFEK/S - Assembled shielded round cable; connection 1: IDC/FLK socket strip (1x 14-position); connection 2: IDC/FLK socket strip (1x 14-position) (The braided shield is routed to a separate cable end.); cable length: 0.6 m- Assembled shielded round cable; connection 1: IDC/FLK socket strip (1x 14-position); connection 2: IDC/FLK socket strip (1x 14-position) (The braided shield is routed to a separate cable end.); cable length: 1.2 m
