FLKM 50/32M/OUT/LA/DV
Weight
0.371 kg
Series FLKM

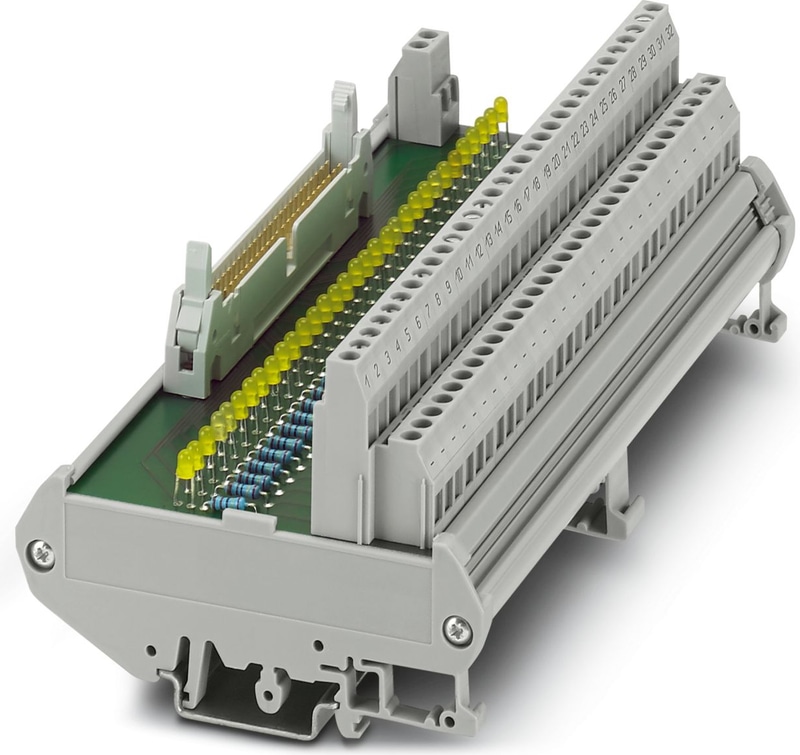

FLKM 50/32M/OUT/LA/DV - Passive module
32-channel module with LED and 2-conductor connection; common negative potential (for Delta V controller output cards)
Technical Specifications
Product properties
| Product family | VARIOFACE |
| Number of Positions | 50 |
| No. of channels | 32 |
| Operating mode | 100% operating factor |
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage range | 19.2 V DC ... 26.4 V DC |
| Current (per branch) | ≤ 1 A |
| Current (Terminal block/terminal block) | ≤ 5 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 50 V |
| Rated surge voltage | 0.5 kV (1.2/50 μs) |
Supported controller EMERSON DeltaV
| Suitable I/O card | VE4002S1T2B6 |
Output data
| Nominal Supply Voltage | 24 V DC ±10 % |
| Continuous load current | 10 mA |
Connection 1 (control level)
| Connection in acc. with standard | IEC 60603-13 |
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Connection 2 (field level)
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Positions | 64 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection 3 (supply)
| Connection Method | Screw connection |
| Number of Connections | 1 |
| Number of Positions | 2 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display | Yellow LED |
| Status display present | Yes |
Item dimensions
| Width | 168.3 mm |
| Height | 89.6 mm |
| Depth | 65.8 mm |
Material specifications
| Color | gray (RAL 7042) |
| Housing insulation material | PVC |
Ambient conditions
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
UKCA
| Certificate | UKCA-compliant |
Air clearances and creepage distances
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
