2321965
Official DistributorSKU
PHX2321965
MPN
FLKM 50/DO326/S7-300
Weight
0.191 kg
Series FLKM

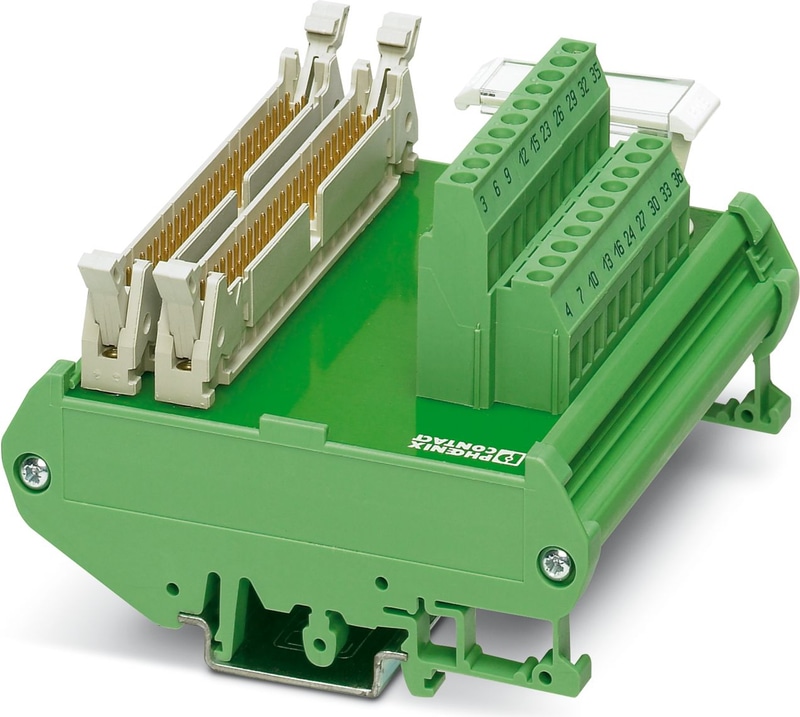

FLKM 50/DO326/S7-300 - Interface module
VARIOFACE interface module for failsafe 6ES7 326-2BF01-0AB0 module of the SIMATIC® S7-300 (two 50-pos. FLK connectors), module width: 90 mm
Technical Specifications
Product properties
| No. of channels | 10 |
Electrical properties
| Max. permissible operating voltage | 25 V AC |
| Max. permissible operating voltage | 60 V DC |
Field level
| Connection Method | Screw connection |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Controller level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 2 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Signaling
| Status display | No |
| Status display present | No |
Item dimensions
| Width | 89.5 mm |
| Height | 89.6 mm |
| Depth | 65.9 mm |
Mounting
| Mounting Type | DIN rail mounting |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2321965?
Proax is an authorized distributor of Phoenix Contact 2321965 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
