Official DistributorSKU
PHX2900176
MPN
FLKM 50/D37SUB/M/HC3/AIO
Weight
0.305 kg
Series FLKM
FLKM 50/D37SUB/M/HC3/AIO - Passive module

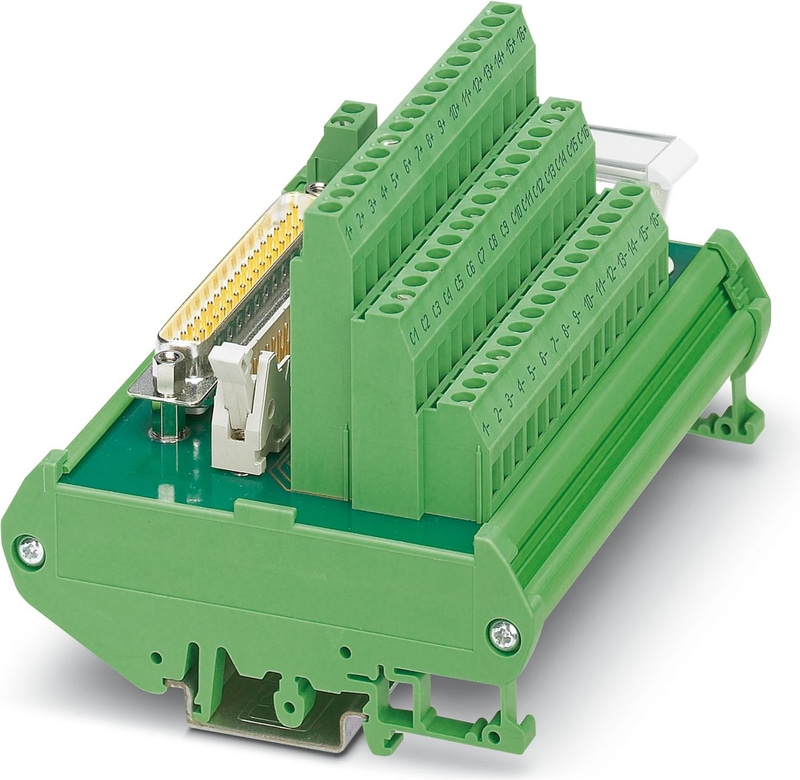

16-channel module for Honeywell C300 modules. The module is controlled by the control system via 37-pos. D-SUB or 50-pos. FLK. A screw connection is available in the field. Module width: 113 mm
Technical Specifications
Product properties
| No. of channels | 16 |
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (DC) | ≤ 50 V DC |
| Current (per branch) | ≤ 0.5 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 50 V |
| Rated surge voltage | 0.5 kV (1.2/50 μs) |
Supported controller HONEYWELL Experion PKS C300/C-Series
| Suitable I/O card | TAIX01 (non-redundant) |
| Suitable I/O card | TAIX11 (redundant) |
Connection 1 (control level)
| Connection in acc. with standard | IEC 60807-2 |
| Connection Method | D-SUB pin strip |
| Screw thread | UNC 4-40 |
| Number of Connections | 1 |
| Number of Positions | 37 |
| Insertion/withdrawal cycles | > 500 |
| Pitch | 2.77 mm |
Connection 2 (control level)
| Connection in acc. with standard | IEC 60603-13 |
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Connection 3 (field level)
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Positions | 48 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Connection 4 (supply)
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Positions | 2 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Signaling
| Status display present | No |
Item dimensions
| Width | 112 mm |
| Height | 89.6 mm |
| Depth | 78.9 mm |
Material specifications
| Color | green (RAL 6021) |
| Housing insulation material | PVC |
Ambient conditions
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
Air clearances and creepage distances
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
