FLKM 50/KDS3-MT/PPA/S7-300
Weight
0.488 kg
Series FLKM

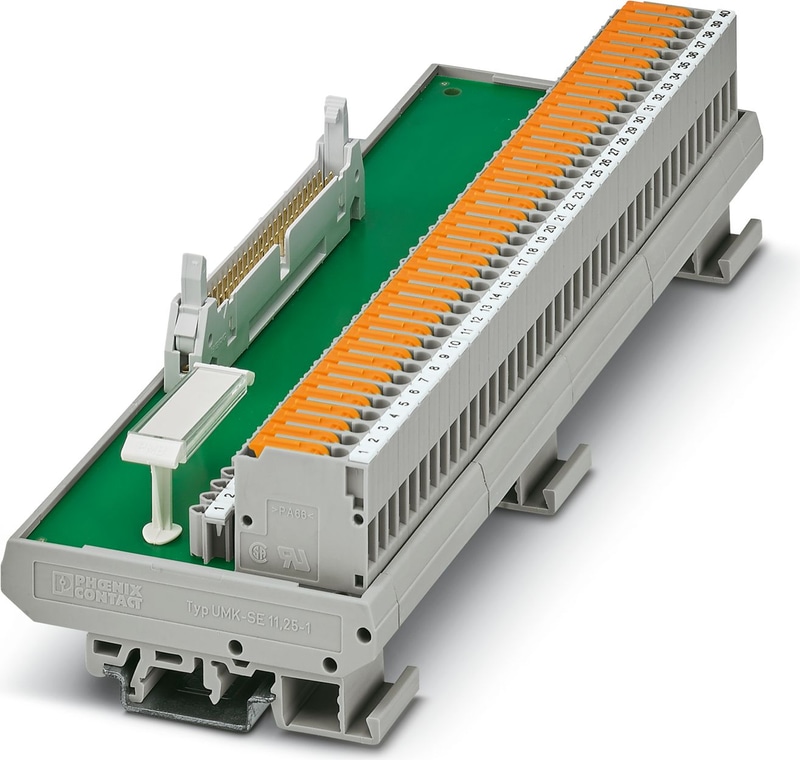

FLKM 50/KDS3-MT/PPA/S7-300 - Passive module
VARIOFACE termination board for Siemens SIMATIC® S7-300, with SIMATIC®-specific marking (1-40), knife-disconnect terminal block, and test pick-off, module width: 214 mm
- Numerical labeling (1 - 40)
- Specifically for S7-300 (in conjunction with the FLKM 50-PA-S300 front adapter, Item No. 2294445)
Technical Specifications
Product properties
| Product family | VARIOFACE |
| Number of Positions | 50 |
| No. of channels | 2 |
| No. of channels | 4 |
| No. of channels | 6 |
| No. of channels | 8 |
| No. of channels | 16 |
| No. of channels | 24 |
| No. of channels | 32 |
Insulation characteristics
| Insulation | Functional insulation |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (DC) | ≤ 60 V DC |
| Current (per branch) | ≤ 1 A |
Air clearances and creepage distances
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
Supported controller SIEMENS S7-300 / ET 200 M
| Suitable I/O card | CPU 313C-2DP |
| Suitable I/O card | CPU 314C-2PtP |
| Suitable I/O card | 6ES7321-1BL00-0AA0 |
| Suitable I/O card | 6ES7322-1BL00-0AA0 |
| Suitable I/O card | 6ES7323-1BL00-0AA0 |
| Suitable I/O card | 6ES7331-7NF00-0AB0 |
| Suitable I/O card | 6ES7331-7PF01-0AB0 |
| Suitable I/O card | 6ES7331-7PF11-0AB0 |
| Suitable I/O card | 6ES7350-2AH01-0AE0 |
| Suitable I/O card | 6ES7357-4AH01-0AE0 |
| Suitable I/O card | CPU 314C-2DP |
| Suitable I/O card | 6ES7332-5HF00-0AB0 |
| Suitable I/O card | 6ES7331-7NF10-0AB0 |
| Suitable I/O card | 6ES7331-1KF01-0AB0 |
| Suitable I/O card | CPU 313C |
| Suitable I/O card | CPU 313C-2PtP |
Supported controller ALLEN-BRADLEY PLC 5
| Suitable I/O card | 1771 OBN |
Connection 1 (control level)
| Connection in acc. with standard | IEC 60603-13 |
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
Connection 2 (field level)
| Connection Method | Screw connection with disconnect knife |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Number of Positions | 40 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection 3 (field level)
| Connection Method | Test socket |
| Number of Positions | 40 |
Signaling
| Status display present | No |
Item dimensions
| Width | 213.45 mm |
| Height | 77 mm |
| Depth | 52.3 mm |
Material specifications
| Color | gray (RAL 7042) |
| Housing insulation material | PVC |
Ambient conditions
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
UKCA
| Certificate | UKCA-compliant |
Air clearances and creepage distances
| Standards/regulations | EN IEC 60664-1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
