2294429
Official DistributorSKU
PHX2294429
MPN
FLKM 50/ 4-FLK14/PA-S400
Weight
0.198 kg
This product is Not Cancellable/Not Returnable
Series FLKM

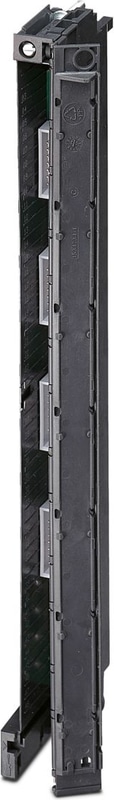

FLKM 50/ 4-FLK14/PA-S400 - Front adapter
VARIOFACE front adapter, for Siemens SIMATIC® S7-400, 4x 8 channels can be connected
- Transmission of a maximum of 32 digital channels via a 14-pos. system cable
Technical Specifications
Insulation characteristics
| Insulation | Functional insulation |
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Operating voltage (AC) | ≤ 25 V AC |
| Operating voltage (DC) | ≤ 60 V DC |
| Max. permissible current | 8 A (per connection, supply via separate power supply) |
| Current (Per path) | ≤ 1 A |
| Current (Total current per byte) | ≤ 2 A (Feed-in via connector) |
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV |
Supported controller SIEMENS S7-400
| Suitable I/O card | 6ES7421-1BL01-0AA0 |
| Suitable I/O card | 6ES7422-1BL00-0AA0 |
| Suitable I/O card | 6ES7422-7BL00-0AB0 |
Field level
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 4 |
| Number of Positions | 14 |
| Pitch | 2.54 mm |
Item dimensions
| Width | 24.2 mm |
| Height | 273.5 mm |
| Depth | 67.6 mm |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Position | any |
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Why Proax for Phoenix Contact 2294429?
Proax is an authorized distributor of Phoenix Contact 2294429 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 2 |
